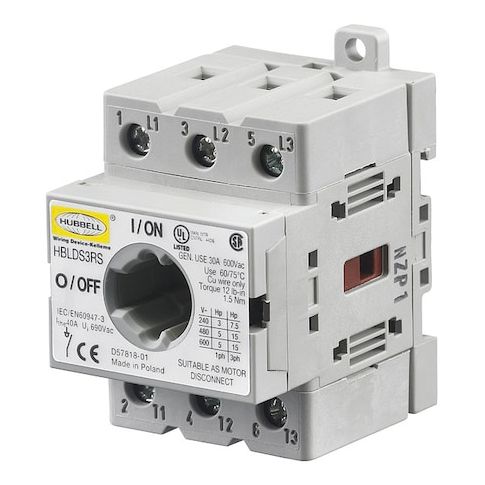

Replacment Disconnect Switch, 30A MPN:HBLDS3RS
Free Shipping
In Stock
The HUBBELL Replacement Disconnect Switch, 30A is a reliable and durable solution for industrial applications requiring a three-pole load break switch. Rated for up to 30 amps and 600V AC, this switch meets UL and CSA standards and is suitable for use as a motor disconnect per NEC section 430.102(B). Its non-fusible design and stainless steel housing provide long-lasting performance in harsh environments, making it ideal for use in factories, construction sites, and other industrial settings. With a wide operating temperature range and high cycling durability, this switch ensures reliable operation in demanding applications.
Top product features:
- Rated for up to 30 amps and 600V AC, this industrial-grade switch is rated for use as a motor disconnect per NEC section 430.102(B) and meets UL and CSA standards.
- Suitable for three-phase systems and has a three-pole configuration.
- Designed with a non-fusible design and stainless steel housing with impact resistance per UL 746C, exposed materials are UV stabilized.
Top product applications:
- Motor Disconnect
- Three-phase systems
- Industrial control panels
The HUBBELL Replacement Disconnect Switch, 30A is a three-pole load break switch designed as a replacement component for Circuit-Lock Series unfused disconnect switches. Rated for up to 30 amps and 600V AC, this industrial-grade switch is rated for use as a motor disconnect per NEC section 430.102(B) and meets UL and CSA standards.
Key Features of the HUBBELL Replacement Disconnect Switch, 30A:
- Current Rating: Rated for 30 A maximum
- Voltage: Supports up to 600V AC (RMS)
- Pole Configuration: Three poles
- suitable for three-phase systems
- Protection Method: Non-fusible design
- Material & Construction: Stainless steel housing with impact resistance per UL 746C
- exposed materials are UV stabilized
- Ingress Protection: IP66 suitability
- NEMA Type 4, 4X, and 12K rated enclosure
- Resistance Properties: Designed to meet specified requirements for impact, moisture, and UV exposure based on applicable standards
- Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation
- Cycling Durability: Mechanical—10,000 cycles
- Electrical—6,000 cycles
- Mounting Style: Rear panel mounting with externally adjustable feet
Additional Information
- Country of Origin: PL
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 3.00
- Package Weight: 0.38
