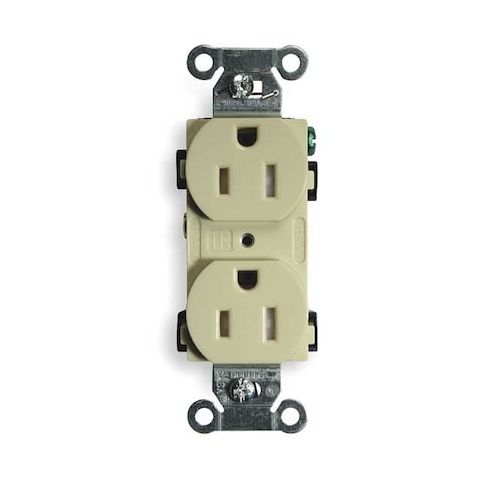

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:BR15ITR
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a reliable and durable solution for indoor electrical needs. Ideal for residential and commercial applications, this tamper-resistant receptacle features a smooth nylon face, wrap-around galvanized steel straps, and integrated shutters for added security. Rated for 15 amps at 125 volts AC, it supports both back and side wiring methods with screw terminals. Perfect for new construction, renovations, or upgrades, this receptacle is UL Listed, CSA Certified, and meets NEMA WD-6 compliance standards. Its compact design and easy installation make it a convenient choice for single-gang applications.
Top product features:
- Tamper-resistant shutters are integrated into the device to prevent children from inserting objects into the receptacle.
- The receptacle features a smooth nylon face for a clean and durable appearance.
- The device supports both back and side wiring methods with screw terminals, allowing for flexibility in installation.
Top product applications:
- General purpose duplex receptacle for indoor use
- Tamper-resistant duplex receptacle for residential applications
- Duplex receptacle for commercial use in office or retail settings
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a tamper-resistant duplex receptacle intended for indoor use. It features a smooth nylon face and wrap-around galvanized steel straps for added durability. This receptacle is grounded, rated for 15 amps at 125 volts AC, and supports both back and side wiring methods with screw terminals.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Tamper Resistant: Integrated shutters are present on the device.
- Electrical Rating: Rated for 15A, 125V AC
- NEMA configuration 5-15R.
- Material Construction: Nylon housing with brass power contacts and galvanized steel mounting strap.
- Wiring Compatibility: Accepts #14–#10 AWG copper stranded or solid conductors
- supports back and side wiring methods.
- Mounting Type: compatible with single-gang applications
- includes grounding staple and mounting hardware.
- Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), meets Federal Specification WC596G, NEMA WD-6 compliant.
- Operating Temperature Range: rated for operation within -40°F to +167°F (-40°C to +75°C).
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 4.50
- Package Height: 2.50
- Package Weight: 1.85
