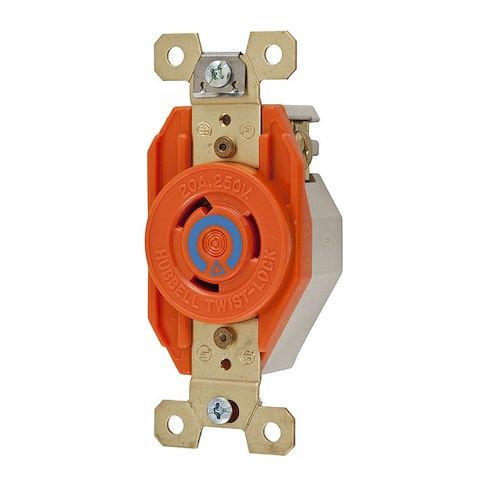

Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:IG2320
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1828251
Locking Receptacle, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals
The Locking Receptacle from Hubbell Wiring is a high-quality, reliable solution for any electrical installation. With insulation barrier construction, it isolates the ground contact from the mounting strap, ensuring a clean and noise-free ground. The wire restraint recess and all-brass mounting and grounding system provide a secure and corrosion-resistant connection. Suitable for a wide range of applications, including commercial and industrial settings, this receptacle is perfect for use in areas where a dedicated isolated ground circuit is required. Its durability and reliability make it an excellent choice for heavy-duty use, ensuring a safe and efficient electrical connection.
Top product features:
- Insulation barrier construction isolates ground contact from mounting strap
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Top product applications:
- Commercial Lighting
- Industrial Power Distribution
- Electrical Panel Upgrade
In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.
• Insulation barrier construction isolates ground contact from mounting strap
• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• High-impact, abuse-resistant nylon face
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
• Insulation barrier construction isolates ground contact from mounting strap
• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• High-impact, abuse-resistant nylon face
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.60
- Package Height: 4.10
- Package Weight: 0.27
Product info last updated on January 27, 2026 5:17am UTC
Category: Wiring Devices
