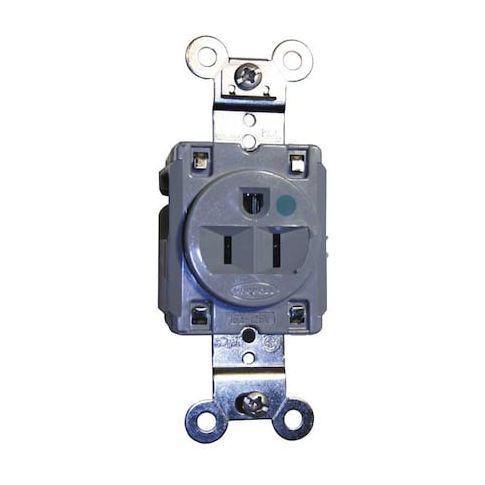

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8210GY
Free Shipping
In Stock
The HUBBELL Hospital Grade Single Receptacle is a reliable and durable solution for healthcare environments. Suitable for installation in hospitals, clinics, and nursing homes, this 15A, 125V AC flush mount outlet features a grounded design and supports #14 to #10 AWG copper conductors. Its impact-resistant nylon housing and four-point grounding system ensure safe and efficient operation. With certifications including CSA, NEMA, and UL, this receptacle meets the highest standards for hospital-grade devices. Ideal for new construction or renovations, it's a trusted choice for healthcare facilities requiring reliable and safe electrical power distribution.
Top product features:
- Flush mount design for installation in hospital and healthcare environments
- Grounded design with four-point grounding system for enhanced safety
- Impact-resistant nylon housing for durability and resistance to damage
Top product applications:
- Hospital and healthcare environments
- Commercial settings with high electrical demand
- Industrial facilities requiring reliable and safe electrical connections
The HUBBELL Hospital Grade Single Receptacle is a 15A, 125V AC flush mount outlet suitable for installation in hospital and healthcare environments. This single NEMA 5-15R receptacle features a grounded design with both back and side wired screw terminals, supporting #14 to #10 AWG copper conductors. The device incorporates an impact-resistant nylon housing and complies with UL requirements for hospital grade devices.
Key Features of the HUBBELL Hospital Grade Single Receptacle:
- Amperage/Voltage: Rated for 15A at 125V AC
- NEMA Configuration: Single outlet, NEMA 5-15R
- Mounting Type: Flush mount with included mounting hardware
- Wiring Method: Back and side wired screw terminals accommodate #14–#10 AWG copper wire
- Contact Material: Brass contacts with nickel-plated bypass contact design
- Grounding System: Four-point grounding system
- Material Construction: Impact modified PBT/reinforced PET body
- nylon faceplate
- Dielectric Strength & Flammability Ratings: Dielectric strength: minimum 2,000V
- Flammability ratings: faceplate UL94V-2
- base UL94V-0 and UL94-5VA
- Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation
- Certifications & Standards: CSA Certified C22.2 No.42 File 285- Federal Specification W-C-596
- NEMA WD-6
- UL Listed to UL498 File E2186
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 4.40
- Package Height: 3.40
- Package Weight: 2.41
