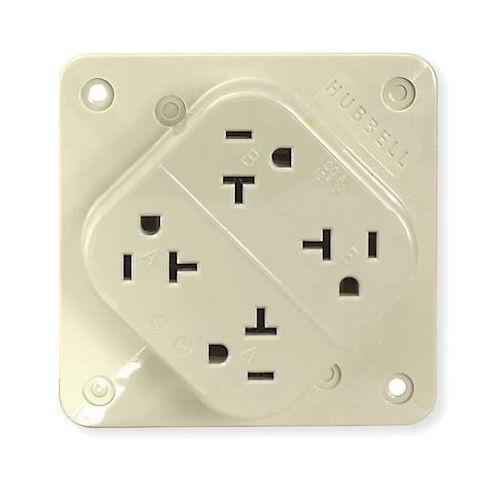

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL420I

• The HUBBELL 4-PLEX Receptacle is a surface mount, quad outlet device rated for 20A and 125V AC. Suitable for commercial and industrial applications, it features four NEMA 5-20R outlets in a single unit, enabling connection of up to four devices. The receptacle uses screw terminals facilitate wiring and accommodates #12 AWG stranded or solid copper conductors.





  Key Features of the HUBBELL 4-PLEX Receptacle:





  • Outlet Configuration: Quad (four) NEMA 5-20R straight blade outlets


  • Amperage/Voltage Rating: Rated for 20A, 125V AC


  • Mounting Type: Surface mount design with included adapter plate and portable box


  • Wiring Method: Back-wired using screw terminals
  • suitable for #12 AWG copper wire


  • Contact Material: Brass triple wipe contacts provide reliable connectivity


  • Grounding: Grounded, with #8-32 brass ground screw (green)


  • Circuit Capability: Rated to UL498 requirements for fault levels up to 1000A
  • dielectric strength rated at 2,000V


  • Material Construction: Polycarbonate housing meets UL94 V-2 flammability rating


  • Operating Temperature Range: -40°C to +75°C (without impact)


  • Standards Compliance: Listed to UL Standard 498 File E2186
  • CSA Certified C22.2 No.42 File 285
  • NEMA WD-6 compliant
