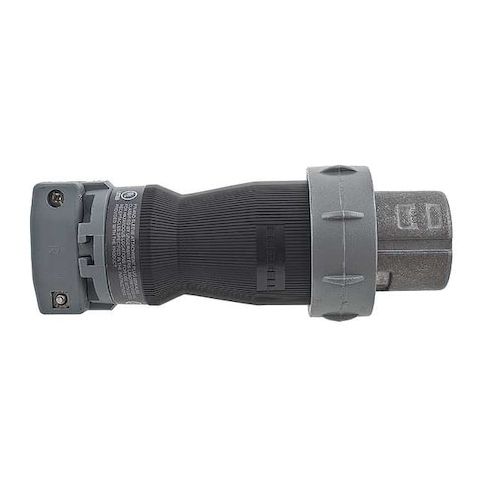

Pin & Sleeve Plug, 30 A, 600V AC, Three Phase, 3 Pole, Style 2 Grounding, Gray, NEMA 4X MPN:HBL430PS2W
Free Shipping
In Stock
The HUBBELL Pin and Sleeve Plug is a reliable and durable electrical connector designed for industrial and commercial applications. Rated for 30 amps at 600V AC or 250V DC, this three-phase plug provides a secure and efficient connection for heavy-duty electrical systems. Its NEMA 4X enclosure protects against water and dust ingress, making it ideal for use in harsh environments. Suitable for a variety of applications, including industrial machinery, commercial equipment, and outdoor installations, this plug ensures safe and reliable operation while meeting multiple industry standards for performance requirements.
Top product features:
- Rated for 30 amps at up to 600V AC or 250V DC (three-phase) for high power applications.
- With a metallic shroud and non-metallic Valox 357 housing for enhanced durability and protection against environmental factors.
- Accepts cable diameters from 0.36 in to 0.78 in and has a maximum wire size of 8 AWG for flexible and secure cable connections.
Top product applications:
- Industrial control panels
- Commercial electrical installations
- Heavy-duty machinery
The HUBBELL Pin and Sleeve Plug, 3P, 4W, 30A, 600VAC is an electrical connector rated for industrial and commercial applications.
Key Features of the HUBBELL Pin & Sleeve Plug:
- Current/Voltage Rating: Rated for 30 amps at up to 600V AC or 250V DC (three-phase).
- Construction: with a metallic shroud and non-metallic Valox 357 housing
- NEMA Enclosure Rating: Type 4X for protection against water and dust ingress.
- Sleeve Contacts: All-brass sleeve contacts
- Locking Ring: UL Type 4X
- Locking ring
- UL Type 4X
- Cable Accommodation: Accepts cable diameters from 0.36 in to 0.78 in
- maximum wire size of 8 AWG.
- Temperature Range: Operates between -40°C minimum and +75°C maximum temperature.
- Connection Orientation/Wire Connection Type: Straight orientation with screw terminals for secure wiring.
- Certifications/Standards: Complies with the following certifications/standards: CSA Certified C22.2 No.159 & Type 4X
- UL Listed (UL1010, UL1682)
- UL94 V-0 flammability rating
- meets multiple industry standards for performance requirements.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 4.60
- Package Height: 4.40
- Package Weight: 1.60
