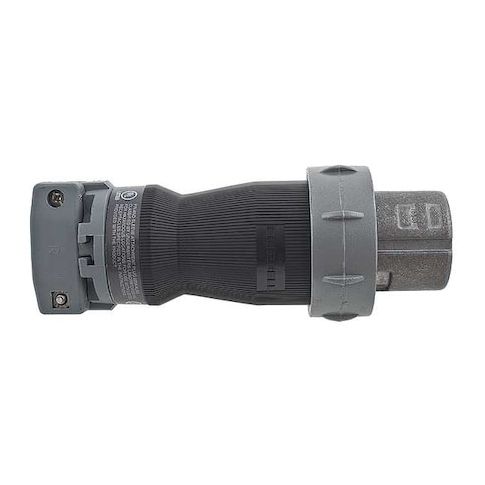

Watertight Pin & Sleeve Plug, 60 A, 600V AC, Single Phase, 2 Pole, Style 1 Grounding, Gray MPN:HBL360PS1W
Free Shipping
In Stock
The HUBBELL Watertight Pin & Sleeve Plug is a reliable and durable electrical connector designed for use in harsh environments. Rated for 60A and up to 600VAC, it provides a secure and watertight seal, making it ideal for applications such as outdoor construction, industrial equipment, and marine use. Its pressure terminal screws ensure secure connectivity, while its non-metallic body construction enhances moisture resistance. With a UL Type 4X rating and compliance with various industry standards, this plug offers peace of mind for users who require a rugged and dependable electrical connection.
Top product features:
- Valox 357 composite housing with aluminum shroud provides non-metallic body construction that enhances moisture resistance.
- Locking ring achieves a UL Type 4X watertight and dust-tight seal.
- All-brass sleeve contacts ensure reliable electrical connections.
Top product applications:
- Industrial Control Panels
- Marine Equipment
- Heavy-Duty Machinery
The HUBBELL Watertight Pin & Sleeve Plug is a 2-pole, 3-wire electrical connector rated for 60A and up to 600VAC. Designed with a combination of metallic shrouding and non-metallic housing, this plug is rated for UL Type 4X watertight and dust-tight seal per applicable standards. It features pressure terminal screws for secure connectivity and accommodates wire sizes from #6 AWG to #4 AWG.
Key Features of the HUBBELL Watertight Pin & Sleeve Plug:
- Current/Voltage Rating: Rated for 60 amps and up to 600V AC (250V DC).
- Construction: Valox 357 composite housing with aluminum shroud
- non-metallic body construction enhances moisture resistance.
- Watertight Design: Locking ring designed to achieve a UL Type 4X watertight and dust-tight seal
- meets CSA C22.2 No.159, UL Standard 1682, UL 50, and UL 1010 standards.
- Cord Compatibility: Accepts all portable cord types with cable diameters from 0.5 in to 1.45 in.
- Connectivity: Pressure terminal screws support wire sizes #6 AWG–#4 AWG
- grounded (Style 1 grounding).
- Performance Ratings: Impact resistant per CSA/UL requirements
- withstands temperatures from -40°C to +75°C
- enclosure flammability rated at UL94 V-0.
- Sleeve Contacts: All-brass sleeve contacts
- Identification: Catalog number and rating are visible while in use
- permanent product identification on device housing.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.60
- Package Width: 5.00
- Package Height: 4.70
- Package Weight: 2.35
