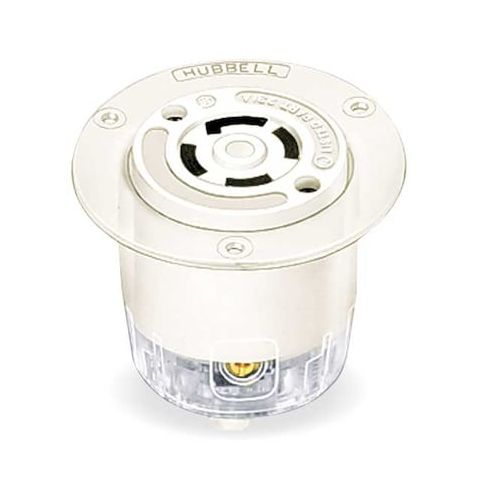

Flanged Locking Receptacle, L19-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, White MPN:HBL2766

• The HUBBELL 30A Flanged Locking Receptacle is a four-pole, four-wire device rated for 277/480V AC applications. Features a flanged mount and twist-lock configuration (NEMA L19-30R). It is constructed of impact-resistant nylon

• intended for use in indoor, dry locations. It accommodates wire sizes from #16 AWG to #8 AWG and supports backwired terminations.




  Key Features of the HUBBELL 30A Flanged Locking Receptacle:





  • Amperage/Voltage: Rated for 30 A at 277/480V AC, three-phase operation


  • NEMA Configuration: L19-30R twist-lock design with polarized connection


  • Material Construction: Nylon housing and flange
  • brass contacts and springs


  • Mount Type: Flanged mount with included mounting screws
  • round flange shape


  • Wire Accommodation: Accommodates solid or stranded copper wire (#16–#8 AWG) via screw terminals
  • backwired style


  • Operating Temperature Range: -40°C to +75°C (without impact)


  • Flammability Rating: V2 or better per UL94/CSA standards


  • NEMA Enclosure/IP Rating: NEMA Type 1 enclosure
  • IP20 suitability for indoor use only


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL 498
