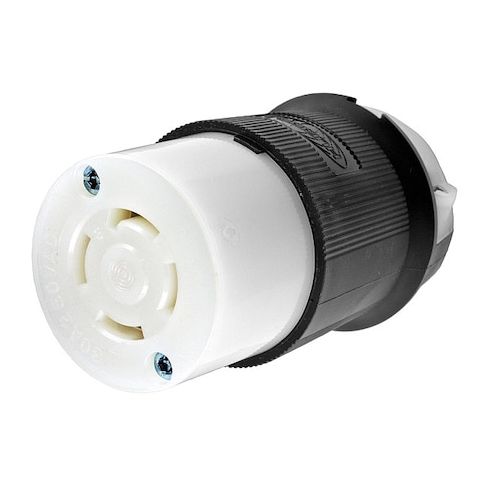

Locking Connector, Non-NEMA, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL3433GCB

• The HUBBELL 30A Twist-Lock Connector is a locking connector rated for use in specified electrical applications and environments. It features a ribbed nylon housing provides grip

• material is rated for impact and chemical resistance per manufacturer specifications for enhanced durability. The connector accommodates cables ranging from 0.350" to 1.150" in diameter and supports wire sizes from #16 AWG to #8 AWG stranded copper wire.




  Key Features of the HUBBELL 30A Twist-Lock Connector:





  • Amperage/Voltage Rating: Rated for 30 A at 250V AC, three-phase, four-wire configuration


  • Body Material: Constructed from natural white nylon with chemical and impact resistance


  • Cord Range: Accepts cable diameters between 0.350" and 1.150"


  • Contact Material: Brass contacts are used as the contact material


  • Wire Connection Type: Screw terminals accommodate #16 AWG to #8 AWG stranded copper wire


  • Dielectric Strength: Withstands a minimum of 2,000V dielectric voltage


  • Flame Resistance: Meets HB or better per UL94 or CSA standards


  • Cord Grip Design: Cord grip is designed to reduce strain on terminations
  • funnel-shaped entry assists with wire insertion during installation


  • Dust Protection: Dust shield included over wiring chamber helps protect wiring chamber from contaminants


  • Temperature Rating: Operates continuously up to 75°C
  • minimum -40°C without impact


  • Standards Compliance: Certified under UL/CSA requirements
  • terminals identified per UL498 (X, Y, Z, White, Green)
