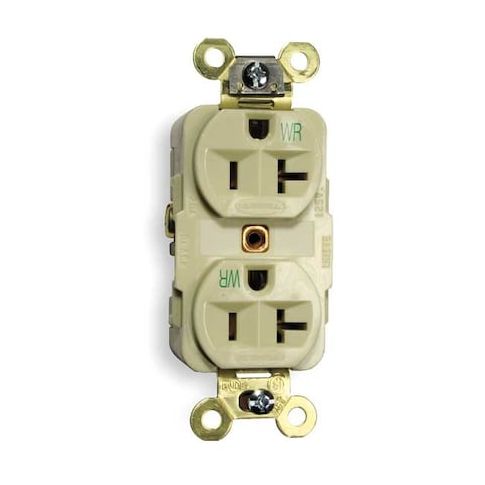

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5362IWR

• The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a traditional duplex straight blade receptacle suitable for heavy-duty applications in accordance with specification-grade requirements. It includes weather-resistant construction

• intended for use in industrial environments as specified by manufacturer guidelines. The device supports both back and side wiring methods with screw terminals, accommodates #12 to #10 AWG copper wire, and provides grounding via an integral ground strap. This receptacle meets multiple industry standards including UL, CSA, Federal Specification W-C-596, and NEMA WD-6.




  Key Features of the HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV:





  • Amperage/Voltage: Rated for 20 A at 125 VAC


  • NEMA Configuration: 5-20R (2-pole, 3-wire grounded)


  • Weather Resistant: Rated as weather resistant per manufacturer specifications


  • Material Construction: Nylon face/top with reinforced PET base
  • nickel-plated brass contacts


  • Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#12–#10 AWG)


  • Mounting Type: Flush mount with included mounting hardware


  • Face Style: Face includes groove pattern for identification purposes


  • Circuit ID Face & Deep Body Design: Deep body design accommodates different installation scenarios


  • Dielectric Strength: Withstands minimum of 2,000V dielectric voltage


  • Certain Certifications Met: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596G compliant
