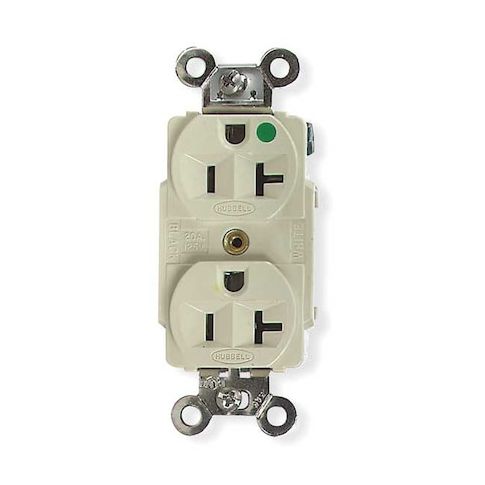

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8300I
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a hospital-grade, duplex receptacle designed for use in demanding electrical environments. Rated for 20 amps at 125 volts AC, this traditional duplex outlet features a deep body design with circuit ID face and a four-point grounding system for redundant ground continuity. It's ideal for use in hospitals, healthcare facilities, and high-use areas where reliability and safety are paramount. With its nickel-plated bypass contacts and UL94 V-0 thermoplastic polyester housing, this receptacle provides superior performance and durability. Its flush mount design and included mounting hardware make installation easy and convenient.
Top product features:
- Deep body design with circuit ID face
- Four-point grounding system for redundant ground continuity
- Nickel-plated bypass contacts for increased contact pressure and lower operating temperature
Top product applications:
- Hospital settings due to its hospital-grade rating and ability to withstand high-traffic areas with its four-point grounding system
- Commercial spaces such as offices and retail stores where a traditional duplex outlet is needed
- Industrial settings where a reliable and durable receptacle is required to handle high-amperage loads
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R IV is a hospital grade, duplex receptacle rated for use in specified electrical environments. This traditional duplex outlet features a deep body design with circuit ID face and is rated for 20 amps at 125 volts AC. It incorporates nickel-plated bypass contacts as specified by manufacturer to increase contact pressure and lower operating temperature, as well as a four-point grounding system as specified by manufacturer for redundant ground continuity in high-use areas.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A, 125 V AC
- NEMA Configuration: 5-20R (2-pole, 3-wire grounded)
- Wiring Method: Back and side wired screw terminals accommodate #12–#10 AWG copper wire
- Contact Material: Nickel-plated brass contacts
- Device Grade: Hospital grade
- complies with Federal Specification W-C-596 and UL498
- Dielectric Strength: Withstands minimum of 2,000V
- Flammability Rating: UL94 V-0 thermoplastic polyester housing
- Mounting Type: Flush mount with included mounting hardware
- Circuit Identification Face & Four Point Grounding System provide clear identification and redundant grounding capability
- Operating Temperature Range: -40°C to +75°C (without impact)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 1.50
- Package Height: 1.80
- Package Weight: 0.20
