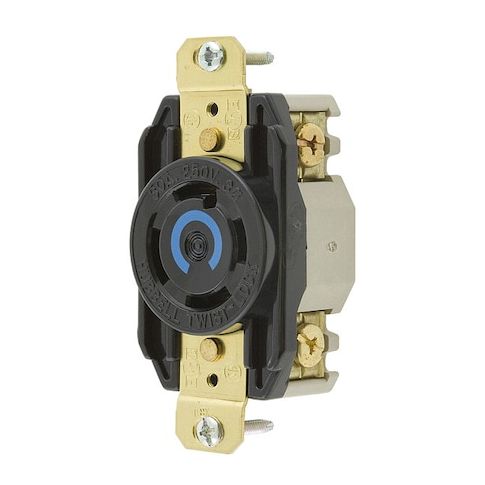

Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals MPN:HBL2720
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Receptacle L15-30R is a reliable and secure industrial-grade locking receptacle designed for indoor use in dry locations. Its twist-lock mechanism prevents accidental disconnection, ensuring safe and efficient three-phase power delivery at 250V AC with a current rating of 30 amps. Suitable for various applications, including manufacturing, construction, and industrial settings, this receptacle accommodates both back and side wiring. Its durable nylon housing, brass contacts, and mounting system provide long-lasting performance, while its flush mount design and face color coding simplify installation and device matching. Perfect for demanding environments, it meets CSA and UL standards for safety and reliability.
Top product features:
- Twist-lock mechanism to help prevent accidental disconnection
- Accepts wire sizes from 16 AWG to 8 AWG for secure connections
- Flush mount design for easy installation and reduced visual impact
Top product applications:
- Industrial power distribution systems
- Commercial construction projects
- Heavy-duty manufacturing facilities
The HUBBELL 30A Twist-Lock Receptacle L15-30R is an industrial-grade locking receptacle intended for use in indoor, dry locations. It includes a twist-lock mechanism to help prevent accidental disconnection and supports three-phase power at 250V AC with a current rating of 30 amps. The device accommodates both back and side wiring, designed to accommodate both back and side wiring.
Key Features of the HUBBELL 30A Twist-Lock Receptacle L15-30R:
- NEMA Configuration: L15-30R, configured for three-pole, four-wire applications
- Voltage/Current Rating: Rated for 250V AC and up to 30 amps
- Wire Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG
- Wiring Style: Standard screw terminals with wire restraint recesses for secure connections
- Material Construction: Nylon housing and base
- brass contacts and mounting system
- Mounting Type: Flush mount design
- includes mounting hardware
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)
- Flammability Rating: UL94 V-2 or better
- HB per UL/CSA standards
- Coding & Identification: Face color coding by voltage helps in proper device matching
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.70
- Package Height: 4.20
- Package Weight: 0.30
