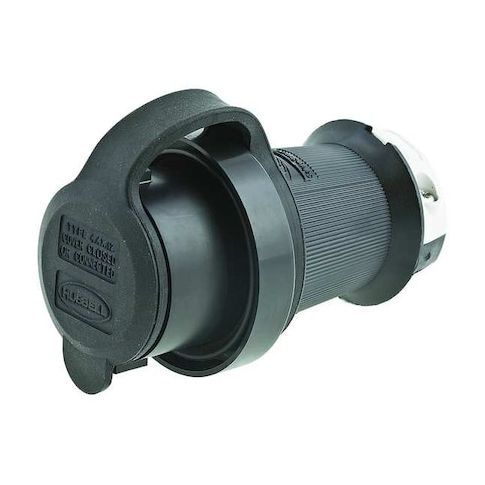

Watertight Locking Plug, L21-30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, White MPN:HBL2811SW
Free Shipping
In Stock
The HUBBELL 30A Watertight Twist-Lock Plug is an industrial-grade locking plug designed for harsh environments requiring resistance to moisture, dust, and weather. Suitable for three-phase power at 120/208V AC, this plug features a four-pole, five-wire configuration with a NEMA L21-30P plug type. Its impact-resistant housing and shroud ensure secure connections under load, while its IP66 rating provides protection against water ingress and chemicals. Ideal for applications in construction, manufacturing, and outdoor settings, this plug offers reliable power distribution in demanding conditions, reducing downtime and increasing productivity.
Top product features:
- The plug features a four-pole, five-wire configuration with a NEMA L21-30P plug type and supports three-phase power at 120/208V AC.
- The plug has an IP66 rating for water ingress and chemical resistance.
- The plug has a shrouded construction that covers internal components during connection or disconnection under load.
Top product applications:
- Outdoor Lighting and Electrical Installations
- Marine Electrical Systems
- Industrial Power Distribution and Control Panels
The HUBBELL 30A Watertight Twist-Lock Plug is a shrouded, industrial-grade locking plug suitable for environments requiring resistance to moisture, dust, and weather. It features a four-pole, five-wire configuration with a NEMA L21-30P plug type and supports three-phase power at 120/208V AC. The plug features an impact-resistant housing and shroud intended to cover internal components during connection or disconnection under load.
Key Features of the HUBBELL 30A Watertight Locking Plug:
- Current/Voltage Rating: Rated for 30 A at 120/208V AC (three-phase).
- NEMA Configuration: L21-30P with four poles and five wires
- polarized design.
- IP66 rated for water ingress and chemical resistance.
- Material Construction: Impact modified PBT housing
- brass blades and contacts
- stainless steel screws
- clear polycarbonate retainer.
- Cord Accommodation: Accepts cord diameters from 0.35 in to 1.15 in
- suitable for wire sizes between 16 AWG and 8 AWG using screw terminals.
- Operating Temperature Range: -40°C to +75°C maximum operating temperature (housing rated up to +60°C).
- Flammability & Standards: UL94 V-0 flammability rating
- CSA Certified Type 4, UL Listed.
- Special Features: Shrouded construction covers contact points
- cord grip is designed to secure the cable at the point of entry.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.20
- Package Height: 3.40
- Package Weight: 0.70
