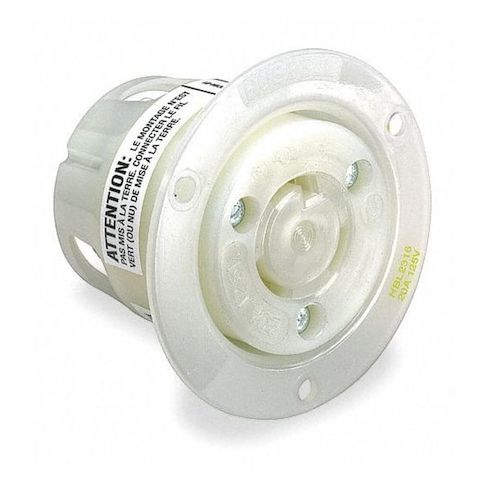

Flanged Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, White MPN:HBL2316
Free Shipping
In Stock
The HUBBELL 20A Flanged Twist-Lock Receptacle is a reliable and versatile industrial-grade electrical receptacle designed for use in a variety of settings, including manufacturing, construction, and heavy industry. With its twist-lock mechanism and NEMA L5-20R configuration, it supports up to 20 amps of single-phase power at 125V AC, making it ideal for equipment and machinery applications. The receptacle's thermoplastic housing and backwired terminations provide a secure and straightforward installation process, while its flush mount design saves space and reduces installation time. Perfect for applications where reliability and safety are paramount.
Top product features:
- 20A single-phase operation
- Twist-lock mechanism with NEMA L5-20R configuration
- Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals
Top product applications:
- Industrial electrical panels for high-amperage applications
- Heavy-duty machinery and equipment installations
- Commercial and industrial construction projects
The HUBBELL 20A Flanged Twist-Lock Receptacle is a flanged locking receptacle intended for use in industrial settings. It includes a twist-lock mechanism with a NEMA L5-20R configuration, supporting 2 poles and 3 wires at 125V AC and up to 20 amps. The unit is housed in thermoplastic materials and includes backwired terminations for straightforward installation.
Key Features of the HUBBELL 20A Flanged Twist-Lock Receptacle:
- Amperage/Voltage: Rated for 20 A, 125V AC single-phase operation
- NEMA Configuration: L5-20R (twist-lock)
- Material Construction: Thermoplastic elastomer housing
- natural white nylon flange
- Mounting Type: Flush mount with included mounting screws
- Wire Accommodation: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals
- Terminal Screws: Accepts slotted, Phillips, and Robertson head drivers (#10-32 terminal screws)
- Operating Temperature Range: -40°C to +75°C (without impact)
- Dielectric Strength & Performance: Withstands minimum of 2,000V
- current interrupting at full rated current
- Flammability Rating: UL94 HB for plugs/connectors
- VO for receptacles/inlets
- Covers & Hardware Included: Comes with cover and mounting hardware
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.10
- Package Height: 2.60
- Package Weight: 0.20
