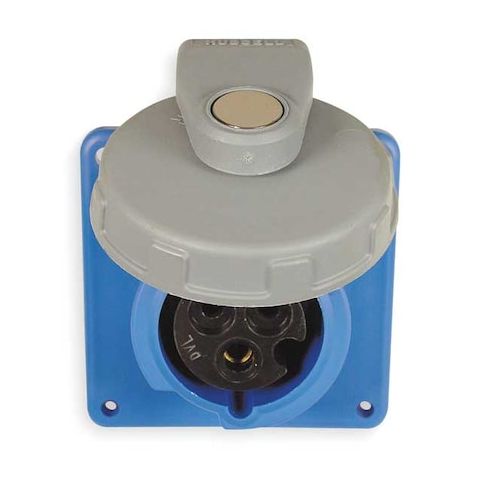

Watertight Pin & Sleeve Receptacle, 20 A, 250V AC, Three Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBL320R6W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Receptacle is a heavy-duty, IP67-rated electrical device designed for industrial applications where moisture and durability are crucial. Suitable for environments with high humidity or exposure to water, this receptacle features a spring-loaded cap and screw terminal wire connections. Rated for 20A and 250V AC, it's perfect for use in harsh conditions, such as outdoor or washdown areas, and is also ideal for applications in the food processing, pharmaceutical, and chemical industries, where hygiene and safety are paramount. Its corrosion-resistant design ensures reliable performance in demanding settings.
Top product features:
- IP67 rated for moisture and durability requirements
- Spring-loaded cap for secure and easy connection
- Corrosion-resistant stainless steel screws for long-lasting performance
Top product applications:
- Industrial settings with high moisture levels such as factories, warehouses, and outdoor applications
- Marine environments including boats, ships, and offshore platforms
- Areas with high levels of dust and debris such as construction sites and mining operations
The HUBBELL IEC Pin and Sleeve Receptacle is a IP67 rated electrical device suitable for industrial applications, rated for 20A and 250V AC. It features a straight connection orientation with screw terminal wire connections, suitable for environments where moisture and durability requirements are specified. The receptacle includes a spring-loaded cap
- IP67 rated, NEMA 4X enclosure classification.
Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:
- Current/Voltage Rating: Rated for 20A, 250V AC
- Body Material: Zytel 101 nylon, high-impact thermoset retainer
- Ingress Protection: IP67
- NEMA Enclosure Rating: 4X
- Cord Size Compatibility: Accepts wire sizes from 14 to 10 AWG (minimum wire size: 12 AWG
- maximum wire size: 8 AWG)
- Operating Temperature Range: -40°C to +75°C
- Number of Poles/Wires/Phase: Two poles, three wires, three-phase configuration
- Grounding Style: IEC grounding with shrouded contacts
- Resistance Properties: Corrosion resistance, impact resistance, moisture resistance
- Screw Material: Made from stainless steel (300 series)
- Standards Compliance: CSA Certified C22.2 No.182.1
- IEC 60309-2
- UL E146032
- UL IEC60309-1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 4.30
- Package Height: 4.80
- Package Weight: 0.90
