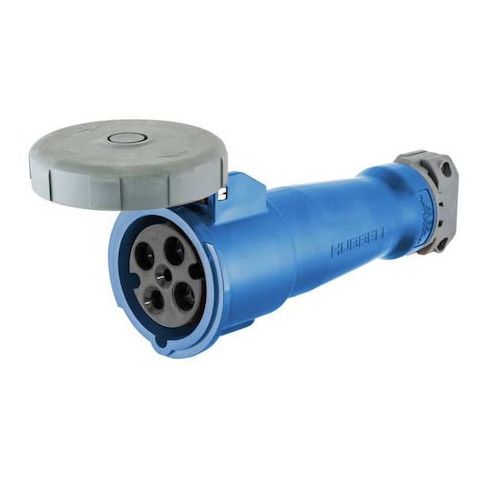

Watertight Pin & Sleeve Connector, 20 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBL420C9W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a reliable solution for industrial settings requiring 20A, 250V AC three-phase power distribution. Its Zytel 801 nylon body and insulated non-metallic housing ensure a watertight seal, making it suitable for use in harsh environments. With a wide range of applications, including heavy-duty equipment and machinery, this connector provides a secure and efficient way to distribute power. Its CSA certification and UL listing ensure compliance with industry standards, making it a trusted choice for industries such as manufacturing, construction, and oil and gas. Its IP68/IP69K rating and self-closing gasketed cover protect internal components from moisture and dust.
Top product features:
- Operates continuously from -40°C (without impact) up to +75°C maximum temperature
- Features IP68/IP69K ingress protection per IEC standards providing resistance to moisture and dust
- Has self-closing gasketed cover protecting internal components when not connected
Top product applications:
- Three-phase power distribution in industrial settings
- Heavy-duty applications requiring 20A, 250V AC power
- Use with cables ranging from 0.33 in to 0.83 in diameter
The HUBBELL IEC Pin and Sleeve Connector is a suitable for use in industrial settings requiring 20A, 250V AC three-phase power distribution. Rated for 20A and 250V AC, this three-phase, four-wire grounding device features a constructed with a Zytel 801 nylon body with an insulated non-metallic housing. It is compatible with the HBL Heavy Duty series and includes pressure terminal screws compatible with #14 AWG to #10 AWG conductors.
Key Features of the HUBBELL IEC Pin and Sleeve Connector:
- Current/Voltage Rating: Rated for 20A, 250V AC
- suitable for three-phase power distribution
- Body Material: Constructed with a Zytel 801 nylon body
- IP68/IP69K ingress protection per IEC standards: IP68/IP69K ingress protection provides resistance to moisture and dust per IEC standards
- Cord Mounted: Designed for use with cables ranging from 0.33 in to 0.83 in diameter
- Color Coded Housing: Blue color coding allows easy voltage identification
- Self-closing gasketed cover: Self-closing gasketed cover protects internal components when not connected
- Screw Terminal Connections: Pressure terminal screws compatible with #14–#10 AWG conductors
- Temperature Range: Operates continuously from -40°C (without impact) up to +75°C maximum temperature
- Standards Compliance: CSA Certified LR280C, UL Classified to IEC 60309-1/2, UL E146033 listed device
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.40
- Package Height: 9.20
- Package Weight: 1.25
