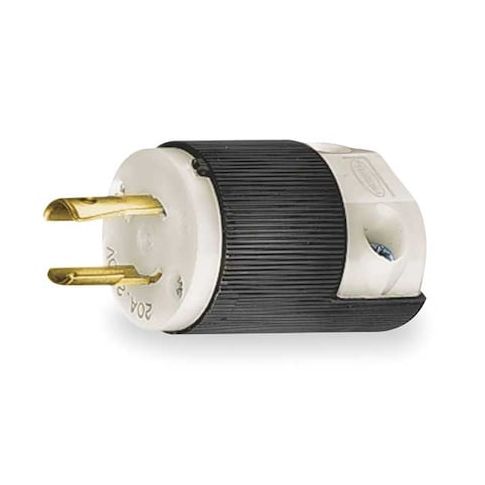

Locking Plug, L2-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL7102C
Free Shipping
In Stock
The HUBBELL 20A Twist-Lock Plug L2-20P is a reliable and secure solution for industrial settings where locking plugs are required. This 2-pole, 2-wire plug is designed to reduce the likelihood of unintentional disconnection, featuring a twist-lock mechanism and integral dust shield for added protection. Suitable for use in dry locations, this plug is rated for 20 amps and 250V AC, with a wide cable range acceptance and robust housing material. Ideal for use in manufacturing, construction, and other high-demand industries, this plug provides peace of mind and ensures safe and efficient operation.
Top product features:
- The plug features a twist-lock mechanism intended to reduce the likelihood of unintentional disconnection.
- The unit includes an integral dust shield covering the wiring chamber to protect it from contaminants.
- The internal wiring chambers are separated, providing insulation between conductors and facilitating inspection.
Top product applications:
- Industrial settings where locking plugs are required
- Commercial electrical installations
- Heavy-duty equipment connections
The HUBBELL 20A Twist-Lock Plug L2-20P is suitable for use in industrial settings where locking plugs are required. This 2-pole, 2-wire plug is rated for 20 amps and 250V AC, featuring a twist-lock mechanism intended to reduce the likelihood of unintentional disconnection. The unit includes an integral dust shield covering the wiring chamber to protect it from contaminants and includes self-threading screws for assembly. Its internal wiring chambers are separated, providing insulation between conductors and facilitating inspection.
Key Features of the HUBBELL - 20A Twist-Lock Plug L2-20P:
- Amperage/Voltage: Rated for 20 A at 250V AC
- NEMA Configuration: L2-20P (twist-lock)
- Poles/Wires: 2 poles, 2 wires
- non-grounded
- Cable Range: Accepts cable diameters from 0.220 in to 0.720 in (#16 AWG to #8 AWG wire size)
- Housing Material: Nylon body with brass blades
- rated as resistant to certain chemicals and impacts per manufacturer specifications
- Operating Temperature Range: -40°C minimum (without impact) up to +75°C maximum continuous use
- Flammability Rating: HB or better per UL94/CSA standards
- Screw Terminals: Standard screw terminal wire connection type
- Standards Compliance: Certified CSA C22.2 No.43, Federal Specification W-C-597, UL Listed (UL499)
- Ingress Protection: IP20 – suitable for indoor dry locations unless protected by additional means
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.70
- Package Height: 2.90
- Package Weight: 0.15
