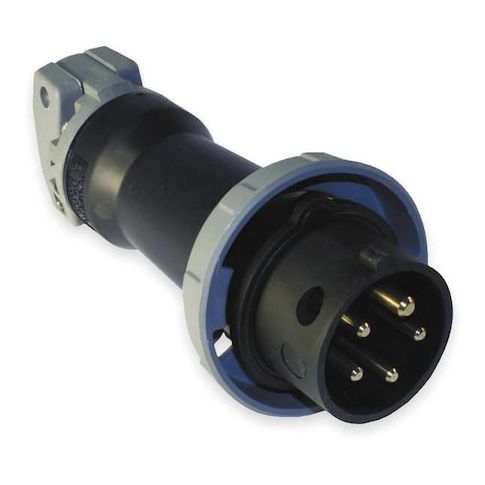

Pin & Sleeve Plug, 20 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black, NEMA Not Rated MPN:HBL520P5W

• The HUBBELL IEC Pin and Sleeve Plug is a electrical connector rated for up to 20A at 347/600V AC, suitable for use in various environments. This 4-pole, 5-wire plug supports up to 20A at 347/600V AC and features a non-metallic Zytel 801 nylon housing. It is grounded, shrouded, and compatible with specified portable cord types within the stated cable diameter range. The device meets multiple industry standards including CSA certification and UL classification to IEC 60309-1/2.





  Key Features of the HUBBELL IEC Pin and Sleeve Plug:





  • Current Rating: Rated for operation up to 20A at a maximum voltage of 347/600V AC


  • Construction: One-piece Zytel 801 nylon body with composite materials
  • impact resistant and moisture resistant as tested according to applicable standards


  • Ingress Protection: IP67 rated enclosure as defined by standard testing procedures


  • Cord Mounting: For cord-mounted installation
  • accepts cable diameters from 0.33 in to 0.83 in


  • Wire Size Compatibility: Accepts wire sizes from #14 AWG up to #1 AWG


  • Connection Type: Pressure terminal screws (screw terminals) used for wire connection


  • Pins & Contacts: Solid brass pins with raised collar design
  • thermoset polyester contact carrier tested per relevant standards


  • Temperature Range: Operates between -40°C minimum and +75°C maximum continuous temperature without impact


  • Standards Compliance: Certified per CSA LR280C and UL Classified to IEC 60309-1/2 standards.
