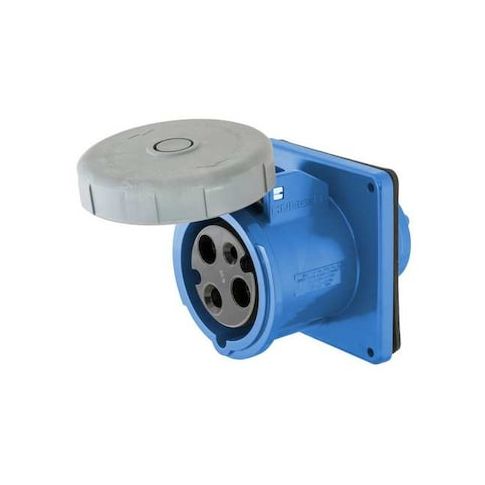

Watertight Pin & Sleeve Receptacle, 60 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue MPN:HBL360R6W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Receptacle is a reliable and durable solution for industrial environments requiring up to 60A and 250V AC single-phase power. Its watertight construction and IP67 ingress protection rating ensure safe and secure connectivity in harsh conditions. Suitable for applications such as manufacturing, construction, and oil and gas, this receptacle provides impact resistance and moisture protection. Its flanged design with screw terminal connections supports wire sizes from #8 AWG to #2 AWG, making it a versatile and convenient option for a wide range of industrial power needs.
Top product features:
- Watertight Construction: IP67 ingress protection rating
- Accepts wire sizes from #8 AWG to #2 AWG
- Pressure terminal screws provide secure connectivity
Top product applications:
- Industrial control panels
- Marine applications requiring 60A and 250V AC power
- Heavy-duty machinery in industrial environments
The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device suitable for use in applications requiring up to 60A and 250V AC single-phase power in industrial environments. Rated for 60A and 250V AC, this single-phase receptacle features a flanged design with screw terminal connections, supporting wire sizes from #8 AWG to #2 AWG. Its construction utilizes Zytel 101 nylon and thermoplastic materials, providing impact resistance and moisture protection, as specified by the manufacturer.
Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:
- Current/Voltage Rating: Rated for 60 amps at 250V AC single phase
- Watertight Construction: IP67 ingress protection rating
- includes neoprene gasket material
- Body Material: Zytel 101 nylon construction
- Cord Size Compatibility: Accepts wire sizes from #8 AWG to #2 AWG
- Connection Type: Pressure terminal screws provide secure connectivity
- Flange Type: Flanged mounting with screw hardware included
- Operating Temperature Range: -40°C to 75°C (continuous operation, non-impact conditions)
- Number of Poles/Wires: Two poles, three wires
- grounded per IEC standards
- Coded Housing Color: Blue housing per IEC convention
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 4.60
- Package Height: 6.10
- Package Weight: 2.47
