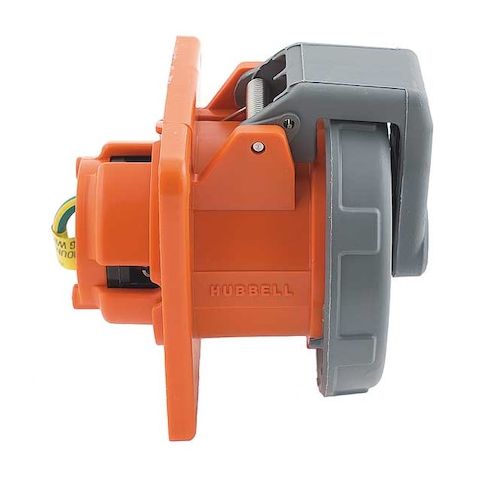

Watertight Pin & Sleeve Receptacle, 100 A, 125/250V AC, Three Phase, 3 Pole, IEC Grounding, Orange MPN:HBL4100R12W

• The HUBBELL IEC Pin and Sleeve Receptacle is a suitable for industrial applications, rated for 100A and 125/250V AC. This receptacle features a rugged, one-piece Zytel 101 nylon housing with a flanged design and straight connection orientation. It features materials rated for impact, moisture, and temperature exposure as specified.





  Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 100A at 125/250V AC


  • Body Material: Zytel 101 nylon


  • IP67 rating with neoprene gasket material


  • NEMA Enclosure Rating: Type 4X


  • Cord Size Compatibility: Accepts wire sizes from 3 AWG to 1/0 AWG using screw terminals


  • Operating Temperature Range: -40°C to +75°C maximum operating temperature


  • Number of Poles/Wires: Three poles, four wires
  • grounded per IEC style


  • Flange Type & Cap: Flanged body with spring-loaded self-closing cap


  • Standards Compliance: Meets UL 1682, UL 94 HB flammability rating, CSA C22.2 No.182.1 & No.0.17, IEC 60309-1 standards
