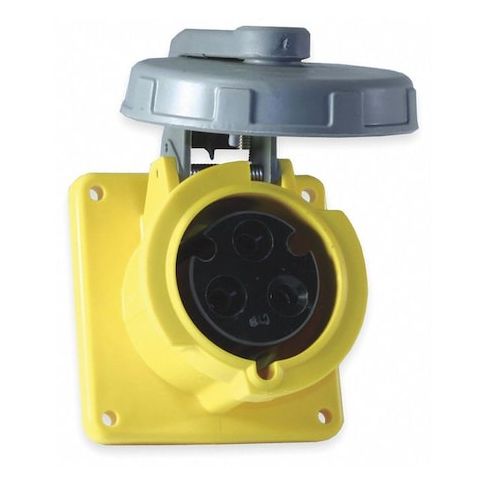

Watertight Pin & Sleeve Receptacle, 60 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow MPN:HBL360R4W

• The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device intended for industrial applications, rated for 60A and 125V AC. This single-phase receptacle features a straight connection orientation and accommodates wire sizes from 8 to 2 AWG. Constructed with materials rated for impact, moisture, and temperature resistance, it offers durability in demanding environments. The unit includes a spring-loaded cap with neoprene gasket.





  Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 60 amps at 125V AC (single phase)


  • Body/Housing Material: Made from Zytel 101 nylon thermoplastic


  • IP/NEMA Rating: IP67 ingress protection
  • NEMA Type 4X enclosure


  • Cord Size Compatibility: Accepts wire sizes from 8 AWG to 2 AWG


  • Operating Temperature Range: -40°C to +75°C maximum operating temperature


  • Flange Type: Flanged design with screw terminal wire connections


  • Number of Poles/Wires: Two poles, three wires
  • grounded per IEC style


  • Cap/Gasket Material: Spring-loaded cap with neoprene gasket


  • Color Coding/Identification: Yellow color-coded housing aids identification in installations


  • Standards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682 & UL94 HB flammability rating, IEC standards
