Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5362BK

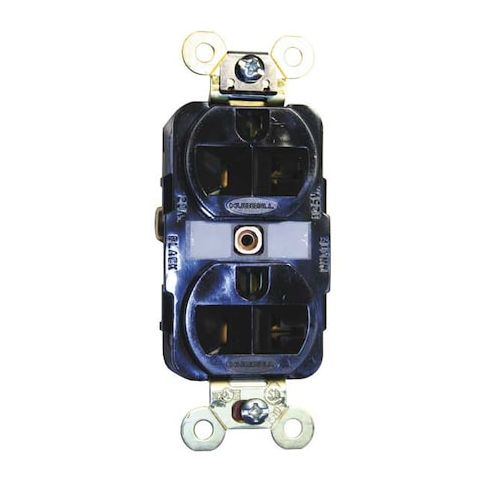

• The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BK is a traditional duplex straight blade receptacle suitable for use in industrial environments. It features a standard flush mount, accommodates #14 to #10 AWG copper conductors, and supports both back and side wiring methods. This receptacle is rated for 20 amps at 125 volts AC and conforms to NEMA 5-20R configuration standards.





  Key Features of the HUBBELL - 20A Duplex Receptacle:





  • Amperage/Voltage: Rated for 20A, 125V AC operation


  • NEMA Configuration: Standard NEMA 5-20R duplex outlet


  • Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#14–#10 AWG)


  • Material Construction: Nylon face with reinforced PET base
  • nickel-plated brass contacts


  • Mounting Type: Flush mount with included mounting hardware


  • Grounding: Integral one-piece brass ground strap
  • includes grounding clip


  • Face Style: Finder Groove face style


  • Operating Temperature Range: -40°C to +75°C (without impact)


  • Circuit Identification Face: Deep body design allows circuit labeling on faceplate


  • Certain Standards Met: UL Listed, CSA Certified, Federal Specification W-C-596, NEMA WD-6 compliant
