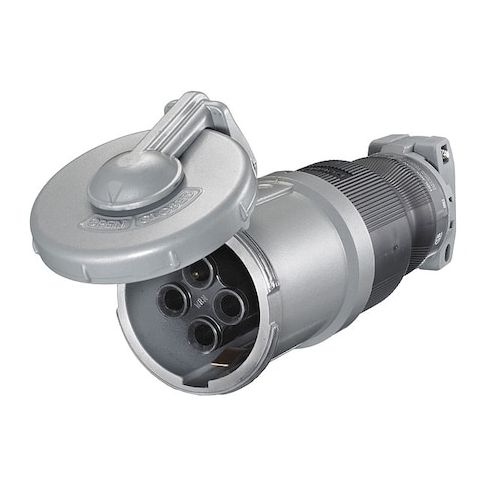

Watertight Pin & Sleeve Connector, 60 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 2 Grounding MPN:HBL460CS2W
Out Of Stock
The HUBBELL Pin and Sleeve Connector is a rugged and reliable solution for industrial electrical applications, providing a watertight connection for 60A and up to 600VAC/250VDC three-phase power. Its durable design withstands harsh conditions, making it ideal for use in wet or corrosive environments. With its NEMA 4X rating and IP68/69K sealing, this connector ensures safe and secure connections in a variety of industries, including manufacturing, oil and gas, and construction. Its ease of use and versatility make it a valuable addition to any electrical system, providing peace of mind and reducing downtime.
Top product features:
- The connector is grounded, supporting three-phase power with four wires.
- It features a combination of Valox 357 thermoplastic housing and an epoxy painted aluminum shroud, constructed with materials intended to withstand typical industrial conditions.
- The connector uses screw terminals for wire connection.
Top product applications:
- Industrial Control Panels
- Automotive Wiring Harnesses
- Heavy-Duty Machinery
The HUBBELL Pin and Sleeve Connector is a watertight electrical connector suitable for industrial applications, rated for 60A and up to 600VAC/250VDC. It features a combination of Valox 357 thermoplastic housing and an epoxy painted aluminum shroud, constructed with materials intended to withstand typical industrial conditions. The connector is grounded, supports three-phase power with four wires, and uses screw terminals for wire connection.
Key Features of the HUBBELL Pin and Sleeve Connector:
- Current/Voltage Rating: Rated for 60A at 600VAC/250VDC
- Body Material: Valox 357 housing with epoxy painted aluminum shroud
- NEMA Enclosure/IP Rating: NEMA 4X
- IP68, IP69K – rated NEMA 4X
- IP68, IP69K
- Operating Temperature Range: -40°C to +75°C
- Cable Compatibility: Accepts cable diameters from 0.5 in to 1.45 in
- wire size range from 6 AWG to 4 AWG
- Connection Orientation: Straight with screw terminal connections
- Pole/Wire Configuration: Three poles, four wires (grounded), Style 2 grounding
- Shrouded Design: includes a shrouded design around pin contacts
- Sealing Features: Spring-loaded gasketed cover and neoprene sealing glands designed to support internal containment and sealing functions
- Resistance Properties: features impact-resistant, moisture-resistant, watertight construction per listed ratings
- UL94 V-0 flammability rating
- Certifications & Standards: CSA Certified C22.2 No.182.1
- UL1682 listed
- Type 4X enclosure rating compatible with UL1686 Class I Insulgrip(R) series devices
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.80
- Package Width: 5.30
- Package Height: 4.40
- Package Weight: 3.20
