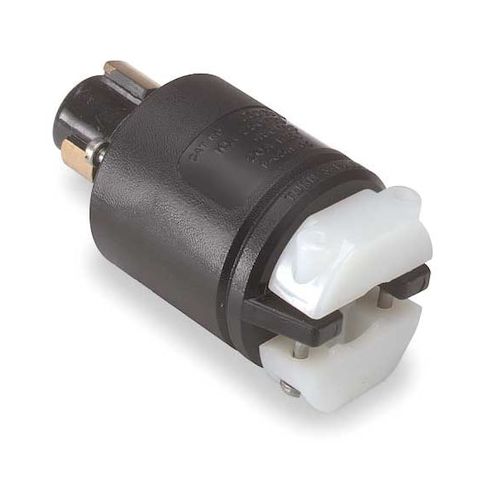

Locking Plug, Non-NEMA, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL23005GB

• The HUBBELL 20/10A Locking Plug is a two-pole, three-wire industrial-grade plug designed for secure electrical connections in demanding settings. It features a non-NEMA locking configuration and is rated for 20 amps at 125V AC, with additional ratings of up to 250V DC and 480V AC. The plug incorporates molded-in brass male contacts.





  Key Features of the HUBBELL - 20/10A Locking Plug:





  • Amperage Rating: Rated for up to 20 A at specified voltages


  • Cable Range: Accepts cables from 0.320 in to 0.660 in diameter


  • Housing Material: Constructed from nylon


  • Wire Connection Type: Screw terminals compatible with #16–#12 AWG stranded copper wire


  • Operating Temperature: Rated for operation within -40°C to +75°C (without impact)


  • Dielectric Strength: 2,000V minimum


  • NEMA Configuration: Non-NEMA locking design
  • polarized, grounded


  • IP Rating: IP30 rated against solid objects greater than 2.5 mm
  • not moisture resistant


  • Flammability Rating: UL94 HB or better flammability performance


  • Standards Compliance: Meets UL 498 requirements for plugs and connectors
