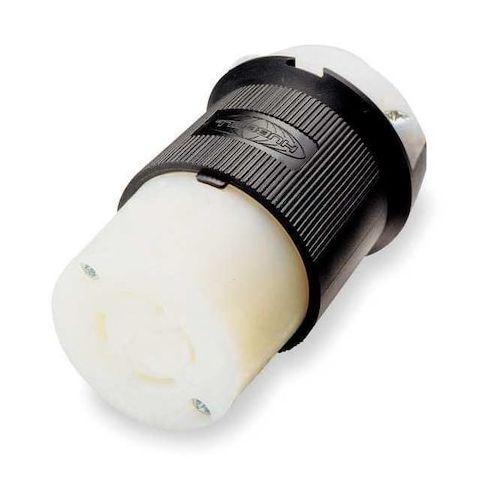

Locking Connector, Non-NEMA, 10/15 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals MPN:HBL7565C
Free Shipping
In Stock
The HUBBELL 15/10A Twist-Lock Connector is a robust and reliable locking connector designed for industrial and commercial electrical applications. Its ribbed nylon housing provides impact and chemical resistance, while the integral VARI-SIZE insert accommodates a wide range of cord diameters. Suitable for use in demanding environments, this connector operates at 125/250V AC and supports 3 poles and 3 wires. Its screw terminal connections and brass contacts ensure secure and efficient wiring. Ideal for use in construction, manufacturing, and other industries, this connector is certified to CSA C22.2 No.42 and UL 498 standards, ensuring compliance and safety.
Top product features:
- Ribbed nylon housing offers impact and chemical resistance.
- Integral VARI-SIZE insert accommodates a wide range of cord diameters.
- Screw terminals provide standard wiring style with terminal identification per UL requirements.
Top product applications:
- Industrial electrical applications
- Commercial electrical applications
- Outdoor electrical installations
The HUBBELL 15/10A Twist-Lock Connector is a locking connector suitable for use in industrial and commercial electrical applications. It features a ribbed nylon housing that offers impact and chemical resistance, with an integral VARI-SIZE insert to accommodate a wide range of cord diameters. This connector supports 3 poles and 3 wires, operates at 125/250V AC, and uses screw terminals for wire connection.
Key Features of the HUBBELL 15/10A Twist-Lock Connector:
- Amperage Rating: Rated for use at either 10 or 15 amps
- Cord Accommodation: Accepts cords from 0.230 in to 0.720 in diameter (#18 AWG to #10 AWG stranded copper wire)
- Body Material: Ribbed nylon housing
- Contact Material: Brass contacts
- Flame Resistance: Meets HB or better per UL94 flammability standards
- Temperature Range: Operates continuously between -40°C (without impact) up to +75°C
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL 498
- Chemical & Impact Resistant Housing: Designed for demanding environments where these properties are required
- Screw Terminal Connections: Standard wiring style with terminal identification per UL requirements (X, Y, Z, White, Green)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.70
- Package Height: 2.90
- Package Weight: 0.01
