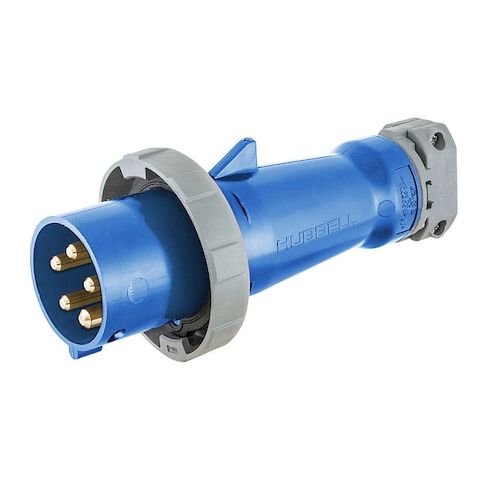

Watertight Pin & Sleeve Plug, 30 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue MPN:HBL530P9W

• The HUBBELL IEC Pin and Sleeve Plug is a watertight electrical connector rated for 30 amps and 120/208V AC. It features a rugged non-metallic housing made from Zytel 801 nylon and composite materials. It is suitable for use with all portable cord types, supports wire sizes from #12 AWG to #8 AWG, and accommodates cable diameters between 0.5 in and 1.45 in.





  Key Features of the HUBBELL IEC Pin and Sleeve Plug:





  • Current/Voltage Rating: Rated for 30 A at 120/208V AC, three-phase operation


  • Watertight Construction: Gasketed sealing ring
  • IP67 ingress protection


  • Material: Non-metallic housing made from Zytel 801 nylon


  • Cord Grip: External cord grip provides strain relief


  • Wire Connection Type: Pressure terminal screws support #12–#8 AWG wire sizes


  • Pole/Wire Configuration: Four poles, five wires
  • grounded per IEC standards


  • Temperature Range: -40°C (no impact) to +75°C continuous use


  • Standards Compliance: CSA Certified C22.2 No.182.1
  • UL Classified to IEC60309-1
  • UL Listed File E146032
