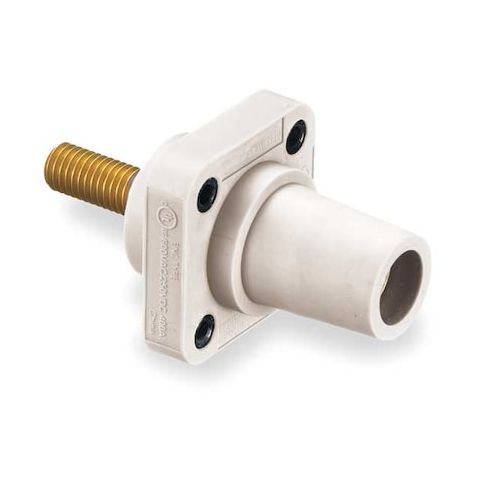

Recpt, White, Female, Threaded Stud, 400 A MPN:HBLFRSW

• The HUBBELL Receptacle, Series 16, is a single pole panel mount device rated for up to 400A at 600V AC or 250V DC. This female receptacle features a stud-type connection and is rated for up to 400A at 600V AC or 250V DC. It is constructed with a thermoplastic elastomer housing and brass contacts, intended for indoor installation.





  Key Features of the HUBBELL Series 16 Panel Mount Receptacle:





  • Amperage/Voltage Rating: Rated for 400A maximum at 600V AC or 250V DC


  • Connection Type: Threaded stud terminal
  • straight orientation


  • Wire Accommodation: Accepts wire sizes from #4 AWG to #4/0 AWG


  • NEMA Enclosure Ratings: Rated for NEMA Types 3R, 4X, and 12


  • Material Construction: Thermoplastic elastomer housing with brass conductor/contact material


  • Mounting Style: Through hole mounting on panels
  • square flange shape


  • Device Compatibility: Compatible with Series 16 devices
  • accepts male plugs only (female receptacle)


  • Standards Compliance: Complies with: ANSI/NFPA 70 (NEC)
  • UL Listed
  • cUL Listed
  • UL94 HB flammability rating
