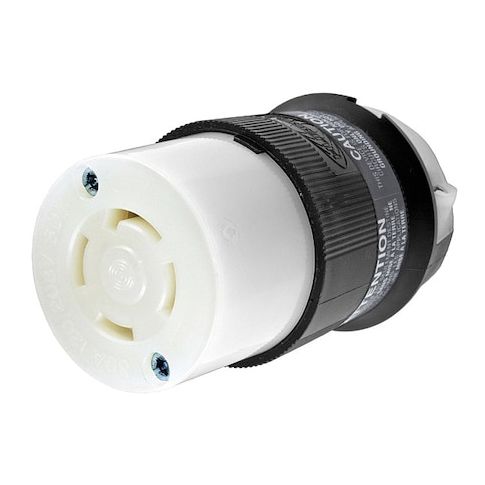

Locking Connector, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White MPN:HBL2753

• The HUBBELL 30A Twist-Lock Connector L18-30R is a heavy-duty industrial locking connector suitable for use in indoor, dry locations. It features a ribbed nylon housing provides grip

• resistant to impact and certain chemicals, with a clear, funnel-shaped wire entry that facilitates wiring. The connector accommodates four poles and four wires, operates at 120/208V AC three-phase power, and is rated for 30 amps of current.




  Key Features of the HUBBELL 30A Twist-Lock Connector L18-30R:





  • Amperage/Voltage: Rated for 30 A at 120/208V AC (three-phase)


  • NEMA Configuration: L18-30R


  • Cable Range: Accepts cable diameters from 0.350" to 1.150"


  • Wire Size Compatibility: #16 AWG to #8 AWG stranded copper wire


  • Nylon body is resistant to certain chemicals and impacts


  • Cord Grip Design: Designed to reduce strain on terminations during use


  • Wire Entry: Funnel-shaped entry assists with the wiring process


  • Dust Shield: Integral shield reduces ingress of dust or contaminants into the wiring chamber


  • Temperature Rating: Operates continuously up to 75°C
  • minimum -40°C without impact


  • Flame Resistance: Meets HB or better per UL94 or CSA standards


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL 498 listed
