Flanged Locking Inlet, Non-NEMA, 50 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Silver MPN:HBL504SS

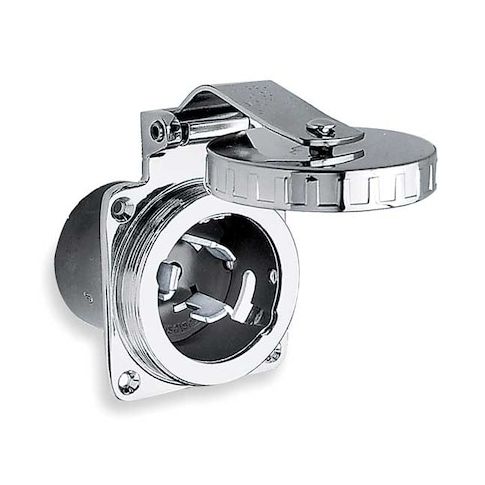

• The HUBBELL 50A Marine Flanged Locking Inlet is a shore power inlet designed for marine applications, serving as a connection point for electrical power transfer. This inlet features a flanged design with a flush mount installation and supports single-phase operation at 125/250V AC, rated for up to 50 amps. The unit includes a self-closing friction tight cover with neoprene gasket to help seal out moisture and debris, while the stainless steel base and cover offer corrosion resistance suitable for harsh environments.





  Key Features of the HUBBELL 50A Marine Flanged Locking Inlet:





  • Current/Voltage Rating: Rated for 50 A at 125/250V AC single phase


  • Number of Poles/Wires: 3 poles, 4 wires
  • grounded configuration


  • Blade Material: Brass blades are used for conductivity


  • Housing Material: Thermoplastic housing with stainless steel base and cover


  • Cable Connection: Accepts wire sizes from minimum to maximum of 6 AWG using screw terminals


  • Mounting Type: Flush mount flange design intended for installation on flat surfaces


  • NEMA Enclosure/IP Rating: Meets NEMA Type 12 & 4X standards
  • IP56 rated


  • Operating Temperature Range: Operating temperature range: -40°C to +75°C


  • Special Features: Includes flip-up self-closing cover with neoprene gasket
  • locking mechanism compatible with shore power inlets (non-NEMA configuration)
