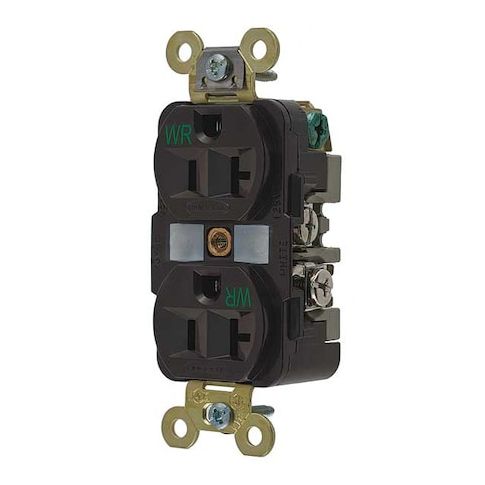

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5362WR
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a reliable and durable solution for industrial settings, featuring a weather-resistant construction and rated for 20 amps at 125 volts AC. Suitable for harsh environments, it supports back and side wiring methods and accommodates #12 to #10 AWG copper wire. Its grounded design ensures proper installation and meets various certifications and standards. Ideal for use in factories, warehouses, and other high-traffic areas, this receptacle provides a safe and efficient way to power equipment and devices. Its flush mount design and robust construction make it a great choice for heavy-duty applications.
Top product features:
- Rated for 20 A, 125 VAC
- Supports back and side wiring methods with screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire
- Includes an integral brass ground strap and stainless steel auto ground clip for proper installation
Top product applications:
- Industrial Settings
- Heavy-Duty Workstations
- Commercial Kitchens
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN is a traditional duplex outlet designed for use in industrial settings. It features a rated as weather resistant construction and is rated for 20 amps at 125 volts AC. The receptacle supports both back and side wiring methods with screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire. Its grounded design includes an integral brass ground strap and stainless steel auto ground clip for proper installation.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A, 125 VAC
- NEMA Configuration: 5-20R, duplex style
- Wiring Method: Back and side wired screw terminals
- accepts #12–#10 AWG copper wire
- Rated as Weather Resistant: Suitable for harsh and heavy use industrial environments
- Material Construction: Nylon/reinforced PET housing with nickel-plated brass contacts
- Mounting Type: Flush mount
- includes grounding clip and mounting hardware
- Dielectric Strength: Withstands minimum of 2,000V
- Operating Temperature Range: -40°C to +75°C (without impact)
- Circuit ID Face & Finder Groove Face Style for identification and handling
- Certifications/Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification WC596, NEMA WD-6 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.70
- Package Height: 4.30
- Package Weight: 0.27
