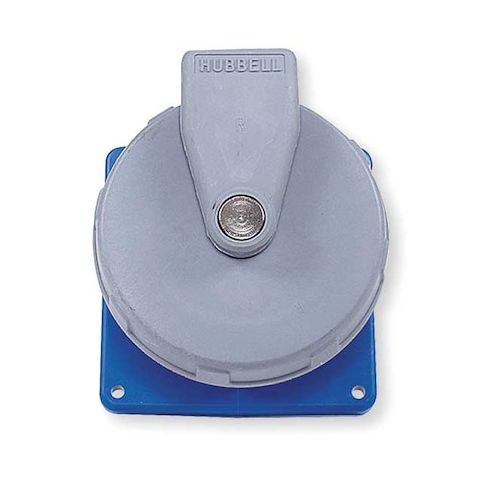

Watertight Pin & Sleeve Receptacle, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBL460R9W

• The HUBBELL IEC Pin and Sleeve Receptacle is suitable for industrial applications, rated for 60A and 250V AC in three-phase systems. It features a rugged Zytel 101 nylon body with a flanged design, providing impact resistance and moisture protection. The receptacle accommodates wire sizes from 8 to 2 AWG and uses screw terminals for secure connections.





  Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 60 amps and 250V AC, three-phase operation


  • Body Material: Zytel 101 nylon


  • Ingress Protection: IP67 rated
  • NEMA Type 4X enclosure


  • Cord Accommodation: Accepts wire sizes from 8 to 2 AWG


  • Operating Temperature Range: -40°C to +75°C maximum operating temperature


  • Connection Orientation: Straight entry with screw terminal connections


  • Grounding Style: IEC grounding configuration
  • shrouded contacts enhance safety during connection/disconnection


  • Resistance Properties: Impact-resistant, moisture-resistant construction with neoprene gasket material


  • Standards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682, UL94 HB flammability rating, and IEC standards
