Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:DR20GRYTR
Free Shipping
In Stock

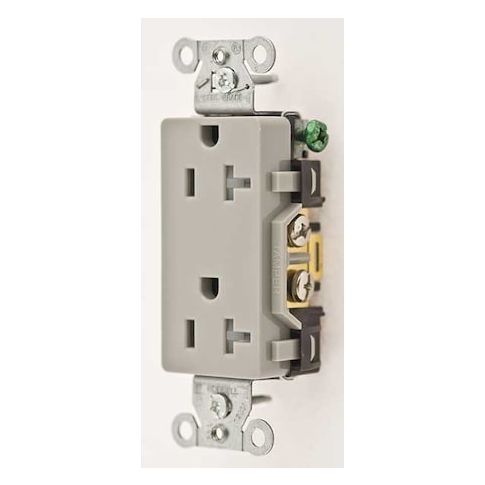

The HUBBELL 5-20R Decorator Duplex Receptacle is a reliable and versatile outlet solution for commercial and industrial settings. Suitable for flush mounting, this 20A, 125V AC receptacle features a tamper-resistant shutter mechanism, ensuring safety and security. Its durable nylon housing and brass power contacts withstand harsh environments, while its steel-zinc plated mounting screws provide a secure hold. Perfect for high-traffic areas, this receptacle supports both back and side wiring and is UL Listed, CSA Certified, and NEMA WD-6 compliant. Ideal for offices, restaurants, and retail spaces, this outlet delivers reliable power and peace of mind.
Top product features:
- Tamper Resistant: Built-in shutters
- Supports both back and side wiring for #12–#10 AWG copper conductors
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
Top product applications:
- Commercial Settings
- Industrial Settings
- Home Decor Projects
The HUBBELL Receptacle is a 20A, 125V AC decorator duplex outlet suitable for flush mounting in commercial and industrial settings. It features a tamper-resistant shutter mechanism.
Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:
- Amperage/Voltage: Rated for 20A at 125V AC
- NEMA Configuration: 5-20R, single phase, polarized, grounded (2-pole, 3-wire)
- Tamper Resistant: Built-in shutters
- Mounting Type: Flush mount
- includes grounding staple and mounting hardware
- Material Construction: Nylon housing and base
- brass power contacts
- steel-zinc plated mounting screws
- Wiring Method: Supports both back and side wiring for #12–#10 AWG copper conductors
- Certification & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 4.80
- Package Height: 3.10
- Package Weight: 1.90
