Recpt, Blk, Female, Double Set Screw, 400 A MPN:HBLFRBK
Free Shipping
In Stock

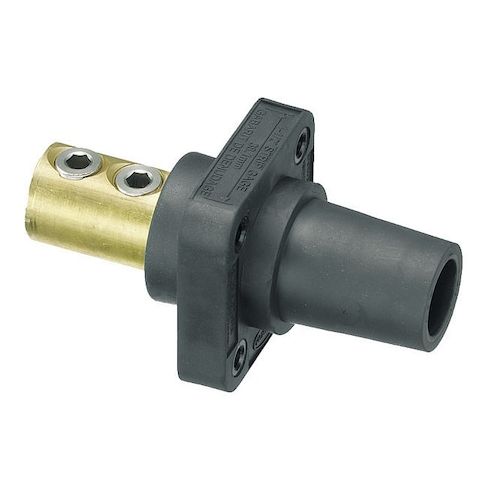

The HUBBELL Series 16 Female Receptacle is a robust and reliable solution for high-current applications, rated for up to 400A and supporting voltages of 600V AC or 250V DC. Suitable for indoor dry locations, this receptacle is ideal for use in commercial and industrial settings, such as in panels, enclosures, and control systems. Its double set screw terminals provide secure cable attachment, while its thermoplastic elastomer construction ensures durability and resistance to environmental stress. With compliance to ANSI/NFPA 70, NEC, UL Listed, and cUL Listed standards, this receptacle offers peace of mind for applications requiring high reliability and safety.
Top product features:
- Rated for up to 400A and supporting voltages of 600V AC or 250V DC, this receptacle features a straight connection orientation and is suitable for indoor dry locations.
- Accommodates wire sizes from #4 AWG to 4/0 AWG.
- Uses double set screw terminals for secure cable attachment.
Top product applications:
- High current capacity applications such as power distribution panels and industrial control systems
- Commercial and industrial electrical installations where high voltage and current ratings are required
- High voltage testing and research applications where a reliable and secure electrical connection is needed
The HUBBELL Series 16 Female Receptacle is a single pole, panel mount device intended for use in applications requiring high current capacity. Rated for up to 400A and supporting voltages of 600V AC or 250V DC, this receptacle features a straight connection orientation and is suitable for indoor dry locations
- suitability in other environments depends on added protection as specified by applicable standards. It accommodates wire sizes from #4 AWG to 4/0 AWG and uses double set screw terminals for secure cable attachment.
Key Features of the HUBBELL Series 16 Female Receptacle:
- Amperage Rating: Rated for up to 400A (AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Cable Range: Accepts #4 AWG to #4/0 AWG conductors
- Terminal Connection Type: Double set screw design with brass contacts
- Mounting Style: Panel mount with through hole mounting hardware
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Housing Material: Thermoplastic elastomer construction
- Industry Standards: Complies with ANSI/NFPA 70, NEC, UL Listed, cUL Listed standards
- Single Pole Device Style: Taper nose configuration
- female gender connection
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.75
