Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL415I
Free Shipping
In Stock

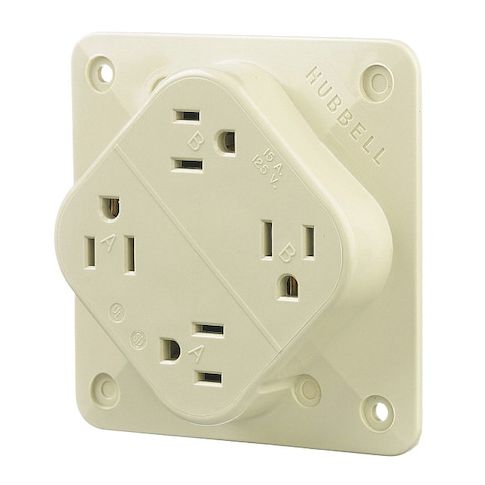

The HUBBELL Quad Outlet Receptacle is a versatile and reliable solution for commercial and industrial settings. Designed for surface mounting, this receptacle features four NEMA 5-15R outlets, allowing for multiple connections from one location. With a 15A, 125V AC rating, it supports up to 1/2 horsepower loads, making it suitable for a variety of applications, including office spaces, warehouses, and manufacturing facilities. Its polycarbonate housing and brass contacts ensure durability and safety, while its grounded, two-pole three-wire configuration meets strict electrical standards. Perfect for high-traffic areas, this receptacle provides efficient and reliable power distribution.
Top product features:
- Four NEMA 5-15R straight blade outlets in a quad arrangement
- Anchor hole and loop feature secures solid wire
- Triple wipe contacts for improved electrical connection
Top product applications:
- Commercial Settings
- Industrial Settings
- Garages
The HUBBELL Receptacle is a 15A, 125V AC quad outlet designed for surface mounting in commercial and industrial settings. This receptacle features four NEMA 5-15R outlets within a single device, allowing multiple connections from one location. It is constructed with a polycarbonate housing and brass contacts suitable for indoor use.
Key Features of the HUBBELL Quad Outlet Receptacle:
- Outlet Configuration: Four NEMA 5-15R straight blade outlets in a quad arrangement
- Mounting Type: Surface mount design suitable for indoor installation
- Electrical Rating: Rated for 15 amps at 125 volts AC
- supports up to 1/2 horsepower loads
- Wiring Method: Back-wired screw terminals accommodate #14–12 AWG copper conductors (stranded or solid)
- Material Construction: Polycarbonate base and housing with .032" brass power contacts
- Grounding: Grounded, two-pole three-wire configuration with green #8-32 brass ground screw
- Circuit Features: Anchor hole and loop feature secures solid wire
- triple wipe contacts
- break-off tabs allow split wiring of outlets
- Certifications & Standards: Listed to UL Standard 498, CSA Certified C22.2 No.42, meets NEMA WD-6 requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 1.60
- Package Height: 4.50
- Package Weight: 0.40
