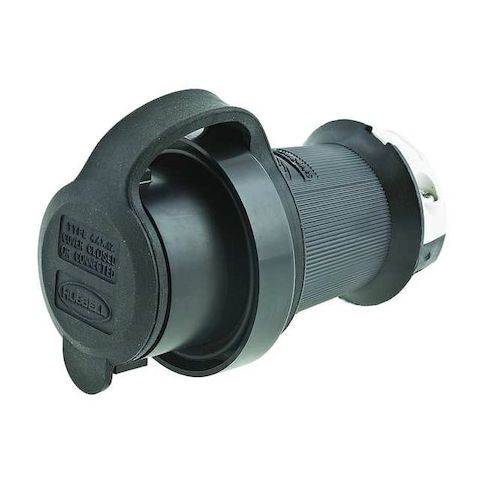

Watertight Locking Plug, L6-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL2321SW
Free Shipping
In Stock
Protect your industrial equipment with the HUBBELL 20A Watertight Twist-Lock Plug, a rugged and reliable solution for harsh environments. Rated for 250V AC and 20 amps, this plug features a watertight design and impact-resistant housing to reduce the risk of arcing and electrical shock. Suitable for use in industrial settings, such as manufacturing facilities, construction sites, and outdoor equipment, this plug provides peace of mind with its CSA Certified Type 4 and UL Listed ratings. Its durable construction and chemical resistance make it ideal for applications where equipment is exposed to moisture, dust, and extreme temperatures.
Top product features:
- Impact-resistant housing and shroud provides additional housing protection while reducing the risk of arcing when connecting or disconnecting under load.
- Accepts cable diameters from 0.36 in to 0.93 in and wire size range from 16 AWG to 8 AWG.
- Chemical resistant, impact resistant, and rated IP66 for resistance to ingress of moisture and dust.
Top product applications:
- Industrial Power Distribution
- Use in hazardous locations such as chemical plants, oil refineries, and manufacturing facilities
- Outdoor applications such as construction sites, outdoor lighting, and weather-resistant equipment
The HUBBELL 20A Watertight Twist-Lock Plug (L6-20P) is a shrouded, industrial-grade locking plug suitable for use in industrial environments. Rated for 250V AC and 20 amps, this plug features a rated IP66 for resistance to ingress of moisture and dust. Its impact-resistant housing and shroud provides additional housing protection while reducing the risk of arcing when connecting or disconnecting under load.
Key Features of the HUBBELL 20A Watertight Locking Plug:
- Current/Voltage Rating: 20 A, 250V AC single phase
- Configuration: Twist-lock design with 2 poles and 3 wires
- polarized and grounded
- Cord Accommodation: Accepts cable diameters from 0.36 in to 0.93 in
- wire size range from 16 AWG to 8 AWG
- Construction Materials: Brass blades and contacts
- impact-modified PBT housing
- stainless steel screws
- clear polycarbonate retainer
- Resistance Properties: Chemical resistant, impact resistant, rated IP66 for resistance to ingress of moisture and dust
- Operating Temperature Range: -40°C to +75°C
- Flammability Rating: UL94 V-0 rated materials
- Certain Standards Met: CSA Certified Type 4
- UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.10
- Package Height: 3.40
- Package Weight: 0.60
