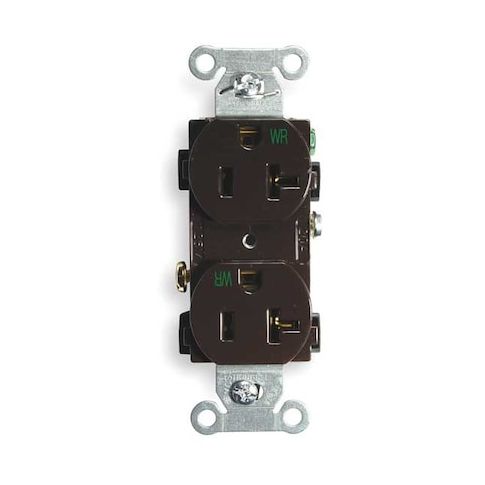

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:BR20WR
Free Shipping
In Stock
Upgrade your commercial electrical installations with the HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN. Designed for flush mounting in standard applications, this duplex receptacle features individual wiring terminals, wrap-around galvanized steel straps, and triple wipe brass contacts. Suitable for weather-exposed environments, it supports back and side wiring methods and accommodates #12 to #10 AWG copper conductors. Ideal for use in offices, restaurants, and other commercial settings, this receptacle ensures safe and reliable electrical connections. With a wide operating temperature range and certification to UL498, CSA, and NEMA standards, it meets the highest industry standards.
Top product features:
- Rated for 20A, 125V AC
- Supports both back and side wiring methods
- Accepts #12–#10 AWG copper stranded or solid wire
Top product applications:
- Commercial Office Buildings
- Standard Residential Applications
- Industrial Settings
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN is a commercial specification grade electrical outlet intended for flush mounting in standard applications. This duplex receptacle features individual wiring terminals that are [Omit], wrap-around galvanized steel straps, and triple wipe brass contacts. It supports both back and side wiring methods and accommodates #12 to #10 AWG copper conductors.
Key Features of the HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN:
- Amperage/Voltage: Rated for 20A, 125V AC
- NEMA Configuration: 5-20R (2-pole, 3-wire grounding)
- Weather Resistant: Rated for use in weather-exposed environments
- Material Construction: Nylon base and face with galvanized steel mounting strap
- Wiring Options: Back and side wired
- screw terminal connections
- Terminal Accommodation: Accepts #12–#10 AWG copper stranded or solid wire
- Dielectric Strength: Withstands minimum of 2,000V
- Operating Temperature Range: -40°C to +75°C (without impact)
- Certification & Standards: UL Listed to UL498, CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 4.30
- Package Height: 2.20
- Package Weight: 1.75
