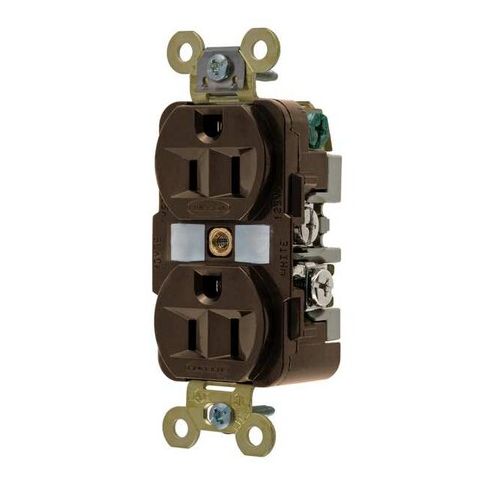

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5262

• The HUBBELL 15A Duplex Receptacle 125VAC 5-15R BN is a traditional duplex straight blade receptacle suitable for specification grade applications. This device features a standard NEMA 5-15R configuration

• rated for 15 amps and 125 volts AC. It is suitable for flush mounting in indoor dry locations and compatible with back and side wiring methods using screw terminals, accepts #14 to #10 AWG copper conductors.




  Key Features of the HUBBELL - 15A Duplex Receptacle:





  • Amperage/Voltage: Rated for 15 A, 125 VAC


  • NEMA Configuration: Standard NEMA 5-15R duplex outlet


  • Wiring Method: Back and side wired
  • accepts #14–#10 AWG copper wire


  • Material Construction: Nylon housing with reinforced PET base
  • nickel-plated brass contacts


  • Mounting Type: Flush mount with included screw hardware


  • Grounding: Includes stainless steel auto ground clip and silicon bronze ground screw


  • Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596, NEMA WD-6 compliant


  • Operating Temperature Range: -40°C to +75°C


  • Dielectric Strength & Flammability Rating: Withstands minimum of 2,000V
  • UL94 V0/V2 flammability rating
