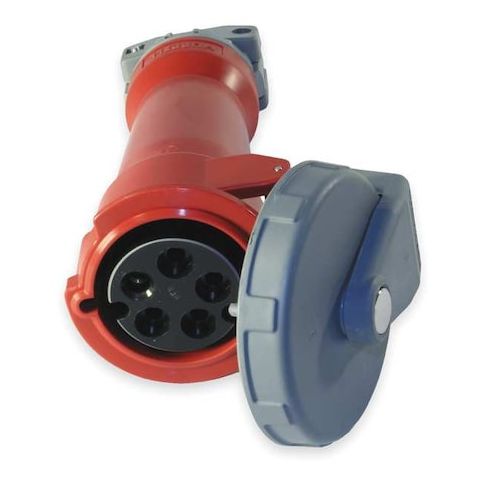

Watertight Pin & Sleeve Connector, 30 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red MPN:HBL530C7W

• The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for use in industrial settings and specified current/voltage levels. Rated for 30 amps and 277/480V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, with materials selected for durability under typical operating conditions. It accommodates 5-wire grounding with screw terminal connectivity and is compatible with the HBL Heavy Duty series.





  Key Features of the HUBBELL IEC Pin and Sleeve Connector:





  • Current/Voltage Rating: Rated for 30 A at 277/480V AC three-phase power


  • Body Material: Constructed from Zytel 801 nylon for durability


  • Environmental Protection: Watertight design with IP68/IP69K ingress protection ratings


  • Cord Grip: External cord grip is intended to reduce strain on conductors during installation and use


  • Wire Accommodation: Accepts #12 AWG to #8 AWG wire sizes
  • supports up to five wires (4 poles + ground)


  • Connection Type: Pressure terminal screws accommodate wire connection as specified by manufacturer instructions


  • Color Coding: Red housing allows easy voltage identification


  • Cover Feature: Self-closing gasketed cover is constructed from materials selected for corrosion resistance
  • covers internal components when closed


  • Temperature Range: Operates between -40°C (without impact) up to +75°C continuous use


  • Standards Compliance: CSA Certified LR280C
  • UL Classified to IEC 60309-1/-2
  • UL E146033 listed device
