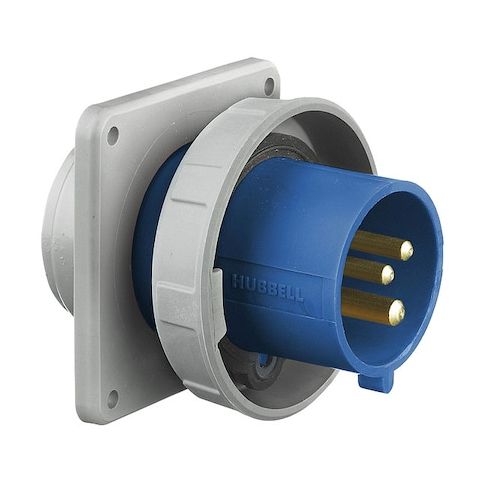

Watertight Pin & Sleeve Inlet, 20 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue MPN:HBL320B6W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Inlet is a reliable and durable solution for secure connectivity in harsh environments. Rated for operation at 20A and 250V AC, it provides watertight protection against moisture and dust, making it ideal for outdoor or industrial applications. Compatible with the HBL Heavy Duty series, this inlet meets international standards and supports wire sizes from #14 AWG to #10 AWG. With a wide operating temperature range and horsepower rating, it's perfect for use in demanding settings such as construction sites, manufacturing facilities, or outdoor equipment installations.
Top product features:
- Watertight Construction: IP67 rated for moisture resistance per IEC 60309-1
- Secure Connectivity: Provides secure connection using pressure terminal screws
- Accepts a Range of Wire Sizes: Compatible with wire sizes from #14 AWG to #10 AWG
Top product applications:
- Industrial control panels
- Marine applications
- Heavy duty machinery
The HUBBELL IEC Pin and Sleeve Inlet is a IP67 rated for moisture resistance per IEC 60309-1 rated for operation at 20A and 250V AC. It is constructed with a Zytel 101 nylon body and thermoset polyester contact carrier. It is compatible with the HBL Heavy Duty series and meets international standards including CSA, UL, and IEC 60309-1/2. The inlet provides secure connectivity using pressure terminal screws and supports wire sizes from #14 AWG to #10 AWG.
Key Features of the HUBBELL - IEC Pin and Sleeve Inlet:
- Current Rating: 20 A
- Voltage Rating: 250V AC
- Single phase
- Body Material: Zytel 101 nylon
- Watertight Construction: IP67 rated per IEC 60309-1
- Cord Size Compatibility: Accepts #14 to #10 AWG wires via screw terminals
- Contact Carrier: Thermoset polyester
- Flanged Design: Flange diameter of 2.72 in
- face diameter of 1.85 in
- Operating Temperature Range: -40°C to +75°C (continuous)
- Horsepower Rating: Rated up to 2 hp
- Grounding Style: IEC grounded configuration with shrouded contacts
- Standards Compliance: CSA Certified LR280C, UL E146032, UL Listed to IEC standards
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 75 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.80
- Package Height: 4.30
- Package Weight: 0.72
