Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:BR15GRYTR
Free Shipping
In Stock

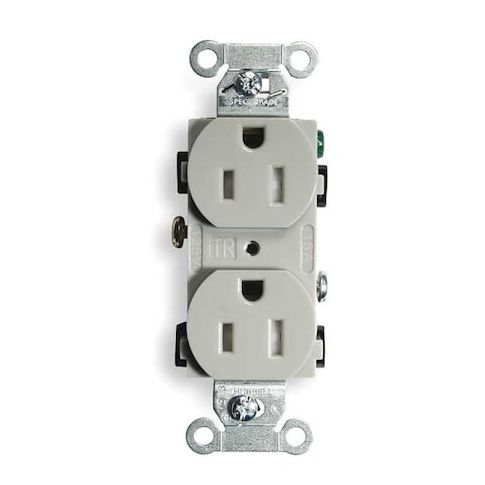

The HUBBELL 15A Duplex Receptacle 125VAC 5-15R GY is a reliable and tamper-resistant electrical outlet designed for indoor use. Built with a nylon housing and brass triple wipe contacts, this receptacle provides a safe and secure connection for your devices. Its flush mount design makes it easy to install and provides a sleek finish. Rated for 15A, 125V AC, and withstands dielectric voltage of 2,000V, this receptacle is perfect for residential and commercial applications, including kitchens, bathrooms, and offices. With its heavy-duty design and certifications from UL and CSA, this receptacle is built to last and meets the highest standards of quality and safety.
Top product features:
- Tamper Resistant: Built-in shutters are present on the receptacle to prevent children from inserting objects into the outlet.
- Flush Mount Design: The receptacle is designed to be mounted flush with the surrounding surface, providing a smooth and finished appearance.
- Accepts #14–#10 AWG Copper Conductors: The receptacle can accommodate a range of wire sizes, allowing for flexibility in installation and reducing the need for additional adapters or converters.
Top product applications:
- Residential interior applications
- Commercial interior applications
- Outdoor applications are not recommended due to the receptacle's design and ratings
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R GY is a tamper-resistant electrical outlet rated for indoor use.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Tamper Resistant: Built-in shutters are present on the receptacle.
- Material Construction: Nylon housing with brass triple wipe contacts and galvanized steel mounting strap.
- Mounting Type: Flush mount design
- includes grounding staple and mounting hardware.
- NEMA Configuration: Standard NEMA 5-15R.
- Wire Accommodation: Accepts #14–#10 AWG copper stranded or solid conductors via screw terminals (back or side wiring).
- Electrical Ratings: Rated for 15A, 125V AC
- withstands dielectric voltage of minimum 2,000V
- maximum continuous operating temperature of 75°C (167°F), minimum -40°C (-40°F) without impact. Rated for 15 amps at 125 volts AC
- see specifications for recommended applications.
- Certifications & Standards: UL Listed to UL498 File E2186, CSA Certified C22.2 No.42 file 285, meets WD-1 Heavy Duty and WD-6 requirements.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.30
- Package Width: 4.50
- Package Height: 2.50
- Package Weight: 1.85
