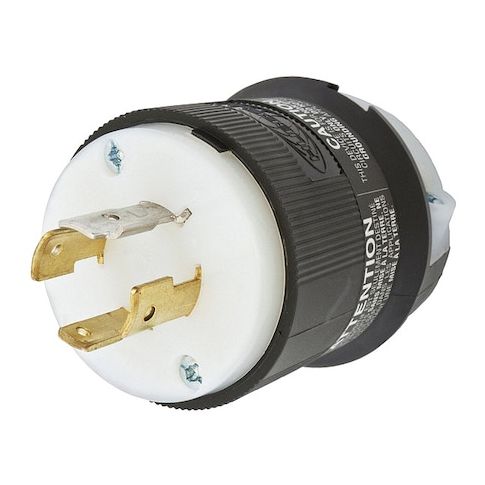

Locking Plug, L18-20P, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White MPN:HBL2441

• The HUBBELL 20A Twist-Lock Plug L18-20P is a locking plug rated for use in industrial applications where a locking connection is specified. It features a 4-pole, 4-wire configuration and is rated for 120/208V AC three-phase power at up to 20 amps. The plug features a cord grip intended to reduce strain on terminations, along with a clear, funnel-shaped wire entry for ease of wiring. An integral dust shield present helps prevent contaminants from entering the wiring chamber.





  Key Features of the HUBBELL - 20A Twist-Lock Plug L18-20P:





  • Amperage/Voltage Rating: Rated for 20 A and 120/208V AC three-phase circuits


  • NEMA Configuration: L18-20P (locking type)


  • Cable Range: Accepts cable diameters from 0.350" to 1.150"


  • Wire Size Compatibility: Accommodates #16 AWG to #8 AWG stranded copper wire


  • Nylon housing provides chemical and impact resistance


  • Operating temperature range: -40°C to +75°C (without impact)


  • Dielectric Strength: Withstands minimum of 2,000V


  • Compatible with listed portable cords
  • suitable for cord-mounted installation


  • Screw Terminals: Standard screw terminal connections with polarized orientation


  • Standards Compliance: Certified to CSA C22.2 No.42, UL498, Federal Specification W-C-596
