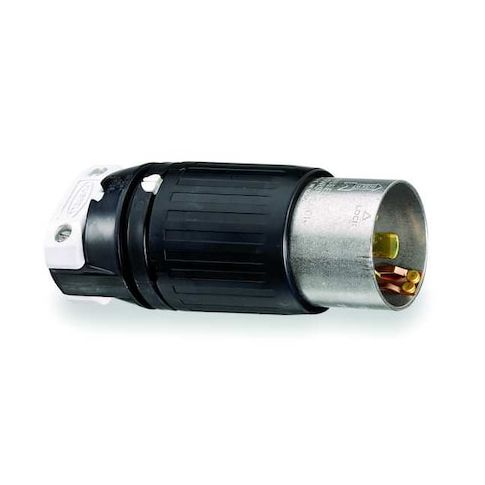

Locking Plug, Non-NEMA, 50 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:CS8165C
Free Shipping
In Stock
The HUBBELL 50A Twist-Lock Plug is a reliable and secure solution for industrial electrical connections. Rated for 50 amps and 480VAC, this three-pole, four-wire plug features a non-NEMA, four-blade design with a nylon housing that withstands impact and chemicals. Its screw terminals and stainless steel shroud ensure safe and efficient connections. Suitable for use in harsh environments, this plug is perfect for applications in factories, construction sites, and other industrial settings where secure electrical connections are critical. By providing a safe and reliable connection, this plug helps prevent electrical shock and reduces downtime, making it an essential component for industrial operations.
Top product features:
- Three-pole, four-wire configuration with non-NEMA, four-blade design.
- Nylon housing is rated for impact and chemical resistance.
- Two-piece external cord clamp with offset gripping jaws secures conductors and jacket.
Top product applications:
- Industrial Electrical Connections
- This locking plug is suitable for use in industrial environments where secure electrical connections are needed.
- High-Voltage Equipment
The HUBBELL 50A Twist-Lock Plug is a locking plug rated for use in industrial environments where secure electrical connections are needed. Rated for 50 amps and 480VAC, this plug features a three-pole, four-wire configuration with non-NEMA, four-blade design. Its nylon housing is rated for impact and chemical resistance.
Key Features of the HUBBELL 50A Twist-Lock Plug:
- Amperage/Voltage: Rated for 50A and 480V AC operation
- Configuration: Three poles, four wires
- non-NEMA (4 blade), grounded
- Housing Material: Nylon construction is rated for impact and chemical resistance
- Cord Accommodation: Accepts cord sizes from 0.750 in to 1.125 in diameter
- wire size #10 AWG to #6 AWG
- Temperature Range: Operates between -40°C minimum (without impact) to +75°C maximum continuous temperature
- Cable Strain Relief: Two-piece external cord clamp with offset gripping jaws secures conductors and jacket
- Connection Type: Screw terminals with box terminal design
- Shrouded Contacts: Stainless steel shroud covers contacts during connection to prevent mismating
- Flammability Rating: UL 94 HB rating on plugs/connectors
- thermoplastic polyester interior adds heat resistance
- Standards Compliance: CSA Certified C22.2 No.42, UL 498 listed product meeting industry requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 2.70
- Package Height: 7.10
- Package Weight: 1.25
