Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded MPN:HBL53CM66C
Free Shipping
In Stock

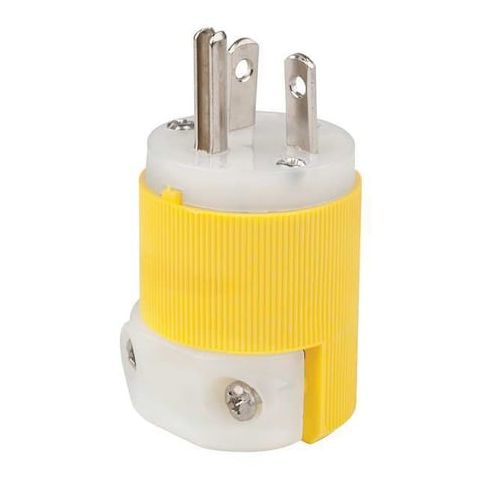

The HUBBELL 3 Wire Industrial Straight Blade Plug is a reliable and versatile solution for industrial and commercial settings, providing a secure electrical connection for applications such as machinery, equipment, and appliances. With its robust ribbed nylon housing and adjustable cord clamp, this plug resists impact and chemicals, ensuring a long-lasting performance in harsh environments. Rated for 20 amps at 125VAC, it accommodates three wires with grounding, making it suitable for a wide range of applications, including marine and outdoor use. Its corrosion-resistant components and marine-grade classification ensure durability and reliability in demanding conditions.
Top product features:
- Ribbed nylon housing that resists impact and chemicals
- Accepts #18 AWG to #10 AWG stranded copper wire
- Withstands minimum of 2,000V dielectric strength
Top product applications:
- Industrial Settings
- Commercial Settings
- Marine Environments
The HUBBELL 3 Wire Industrial Straight Blade Plug is a plug rated for use in industrial and commercial settings
- provides electrical connection as specified. It features a straight blade configuration, rated for 20 amps at 125VAC, and accommodates three wires with grounding. The plug includes a ribbed nylon housing that resists impact and chemicals, as well as an adjustable cord clamp suitable for cable diameters from 0.23 in to 0.72 in.
Key Features of the HUBBELL 3 Wire Industrial Straight Blade Plug:
- Amperage/Voltage Rating: Rated for 20A at 125V AC
- NEMA Configuration: NEMA 5-20P, grounded with three blades
- Housing Material: Ribbed nylon housing
- Cord Clamp: VARI-SIZE adjustable cord clamp fits cables from 0.230 in to 0.720 in diameter
- Wire Accommodation: Accepts #18 AWG to #10 AWG stranded copper wire
- back wired screw terminals
- Operating Temperature Range: -40°F to +167°F (maximum continuous temperature of 75°C)
- Dielectric Strength & Flammability: Withstands minimum of 2,000V
- UL94 HB or better flammability rating
- Corrosion resistant components
- marine grade classification
- Standards Compliance: CSA Certified C22.2 No.42 File 280, NEMA WD-6 Compliant, UL Listed to UL498 File E1706
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.20
