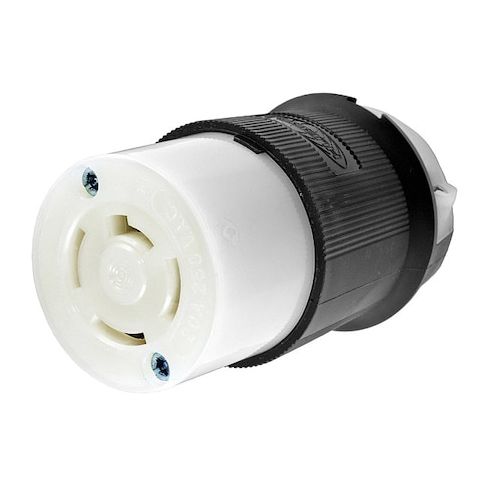

Locking Connector, Non-NEMA, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL7413GCB

• The HUBBELL 20A Locking Connector is an industrial connector rated for use in specified environments. It features a ribbed nylon housing

• see specifications for material properties and resistance to impact and chemicals, as well as an insulated body with screw terminals suitable for #16 AWG to #8 AWG stranded copper wire. The connector accommodates cable diameters from 0.350" to 1.150", operates at up to 250V AC, and supports three-phase power with three poles and four wires.




  Key Features of the HUBBELL 20A Locking Connector:





  • Amperage/Voltage Rating: Rated for 20 A at 250V AC, suitable for industrial/commercial use


  • Body Material: Constructed from natural white nylon (omit qualitative claims)


  • Cord Range: Accepts cables with diameters between 0.350" and 1.150"


  • Contact Material: Brass contacts provide electrical connectivity


  • Wire Size Compatibility: Accommodates #16 AWG to #8 AWG stranded copper wire


  • Screw Terminals: Standard wiring style with funnel-shaped entry facilitates wire insertion


  • Temperature Rating: Operates continuously from -40°C (without impact) up to +75°C


  • Flame Resistance: Meets HB or better per UL94 or CSA standards


  • Ingress Protection: IP20 rating
  • intended for indoor dry locations unless otherwise protected


  • Additional Features: Integral dust shield covers internal wiring chamber
  • cord-mounted design
  • terminals identified per UL 498 requirements
