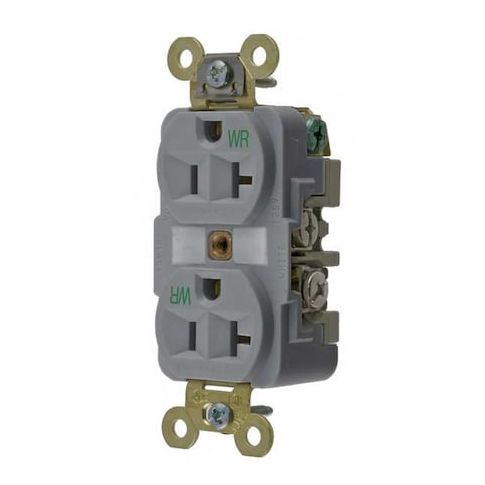

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5362GYWR
Free Shipping
In Stock
This HUBBELL 20A Duplex Receptacle is a reliable and weather-resistant solution for demanding environments. Suitable for use in residential and commercial settings, it offers a traditional duplex straight blade design with a grounded design and finder groove face style for circuit identification. The device is rated for 20 amps and 125 volts AC, with back and side wired screw terminals accommodating #12 to #10 AWG copper wire. Its flush mount installation and nickel-plated brass contacts ensure a secure and efficient power delivery. Ideal for use in areas with high electrical demands, such as offices, kitchens, and laundry rooms.
Top product features:
- Rated for 20 A, 125 VAC operation
- Back and side wired screw terminals support stranded or solid copper wire (#12–#10 AWG)
- One-piece brass integral ground strap with grounding clip
Top product applications:
- Office buildings
- Commercial kitchens
- Industrial facilities
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R GY is a traditional duplex straight blade receptacle intended for use in demanding environments
- meets specification-grade requirements. Rated for 20 amps and 125 volts AC, this device is constructed with materials rated as weather resistant per applicable standards. It includes both back and side wired screw terminals to accommodate #12 to #10 AWG copper wire, with a grounded design and finder groove face style for circuit identification.
Key Features of the HUBBELL - 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A, 125 VAC operation
- NEMA Configuration: NEMA 5-20R, standard duplex outlet type
- Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#12–#10 AWG)
- Material Construction: Nylon/reinforced PET housing with nickel-plated brass contacts
- Weather Resistant: Rated for resistance to environmental exposure per applicable standards
- Mounting Type: Flush mount installation with included mounting hardware
- Grounding Features: One-piece brass integral ground strap
- includes grounding clip
- Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-596, NEMA WD-6 compliant
- Operating Temperature Range: Maximum continuous temperature of 75°C
- minimum -40°C without impact
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.70
- Package Height: 4.30
- Package Weight: 0.27
