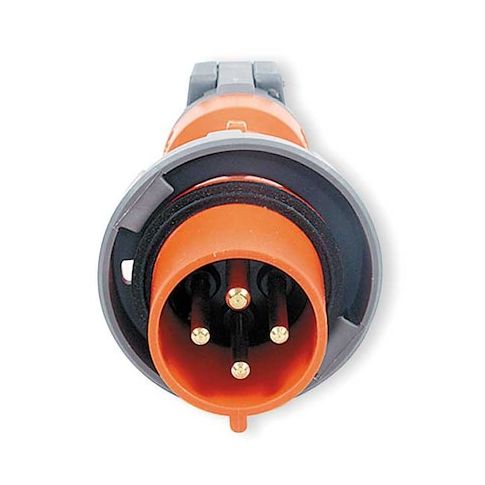

Watertight Pin & Sleeve Plug, 30 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange MPN:HBL430P12W

• The HUBBELL IEC Pin and Sleeve Plug is suitable for industrial and commercial environments. This 3-pole, 4-wire plug is rated for 30 amps and supports voltages up to 250V AC. Constructed with a rugged non-metallic housing made from Zytel 801 nylon, it includes a gasketed sealing ring

• IP67 rating indicates resistance to moisture and dust ingress. The plug accommodates wire sizes from 14 AWG to 10 AWG using screw terminals, making it suitable for secure power connections
• rated for impact resistance.




  Key Features of the HUBBELL IEC Pin & Sleeve Plug:





  • Current/Voltage Rating: Rated for 30A at 125/250V AC single phase


  • Pole/Wire Configuration: Supports three poles and four wires


  • Body Material: Made from Zytel 801 nylon with non-metallic housing


  • Watertight Protection: Gasketed sealing ring
  • IP67 rating
  • NEMA Type 4X enclosure


  • Temperature Range: Operates between -40°C to +75°C


  • Cable Accommodation: Accepts cable diameters from 0.5 in to 1.25 in
  • maximum wire size of 10 AWG


  • Connection Type: Screw terminal wiring with straight connection orientation


  • Grounding Style: IEC grounded design with shrouded contacts


  • Resistance Properties: Rated as impact resistant, moisture resistant, watertight (per standards)
