Locking Plug, L6-30P, 30 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Yellow MPN:HBL26CM21
Free Shipping
In Stock

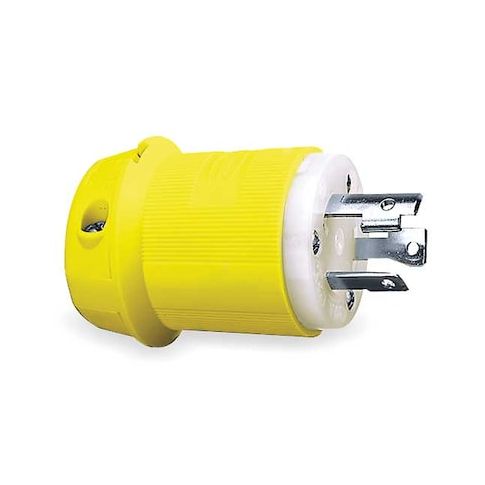

The HUBBELL 30A Marine Twist-Lock Plug L6-30P is a reliable and durable locking plug designed for use in industrial and marine environments. Its ribbed nylon housing provides a secure grip, while its impact-resistant and chemical-resistant material ensures long-lasting performance. The plug features a cord grip to manage strain on terminations and an integral dust shield to protect against contaminants. Suitable for applications such as boat docks, marinas, and industrial settings, this plug is rated for 30A at 250V AC with single-phase operation and meets various industry standards for safety and performance.
Top product features:
- Ribbed nylon housing provides grip and is rated as impact resistant and chemical resistant.
- Integral dust shield covers the wiring chamber to protect from contaminants.
- Cord grip designed to help manage strain on terminations.
Top product applications:
- Industrial applications such as manufacturing plants and construction sites
- Marine environments including boats and yachts
- Outdoor events such as concerts and festivals
The HUBBELL 30A Marine Twist-Lock Plug L6-30P is a locking plug suitable for use in industrial and marine environments. It features a ribbed nylon housing provides grip
- material is rated as impact resistant and chemical resistant. The plug includes an integral dust shield covers the wiring chamber to protect from contaminants and includes a cord grip designed to help manage strain on terminations.
Key Features of the HUBBELL 30A Marine Twist-Lock Plug L6-30P:
- Amperage/Voltage Rating: Rated for 30 A at 250V AC with single phase operation
- Cord Accommodation: Accepts all listed portable cords ranging from 0.360" to 0.930" diameter (#16 AWG to #8 AWG wire size)
- Material Construction: Ribbed nylon housing
- nickel-plated brass blades
- Resistance Properties: Rated as corrosion resistant, chemical resistant, and impact resistant
- Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use
- NEMA Configuration: L6-30P
- polarized and grounded design
- Screw Terminals: Standard wiring style with screw terminal connections
- Standards Compliance: UL 498 Listed, CSA C22.2 No.42 Certified, Federal Specification W-C-596 compliant
- Dielectric Strength & Performance: Withstands minimum of 2,000V dielectric voltage
- current interrupting at full rated current
- IP20 rating for moisture resistance
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.40
- Package Height: 2.30
- Package Weight: 0.25
