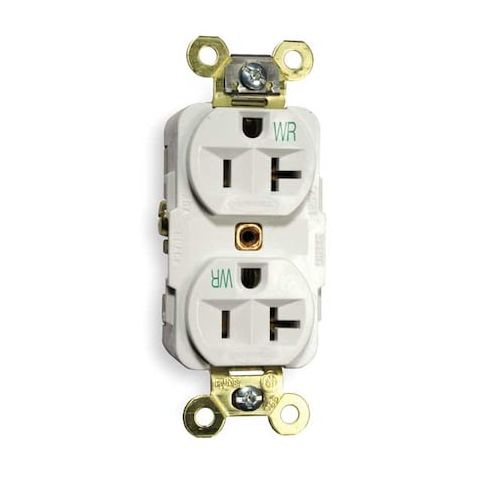

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5362WWR

• The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a traditional duplex outlet rated for extra heavy duty and specification-grade applications. It includes weather resistant construction and is intended for use in industrial environments. The receptacle supports both back and side wiring methods with screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire. Its Finder Groove face style provides easier identification during installation.





  Key Features of the HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH:





  • Amperage/Voltage: Rated for 20 A at 125 VAC


  • NEMA Configuration: 5-20R, duplex outlet type


  • Wiring Method: Back and side wired screw terminals
  • accommodates #12–#10 AWG copper wire


  • Material Construction: Nylon/reinforced PET housing with nickel-plated brass contacts


  • Weather Resistant: Rated for use in demanding environments


  • Mounting Type: Flush mount with included mounting hardware


  • Grounding: Integral ground strap and grounding clip included
  • grounded design (2-pole, 3-wire)


  • Certification & Standards: UL Listed to UL498, CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant


  • Operating Temperature Range: -40°C to +75°C (without impact)


  • Dielectric Strength & Flammability Rating: Withstands minimum of 2,000V
  • Top rated UL94 V-2 flammability or better
