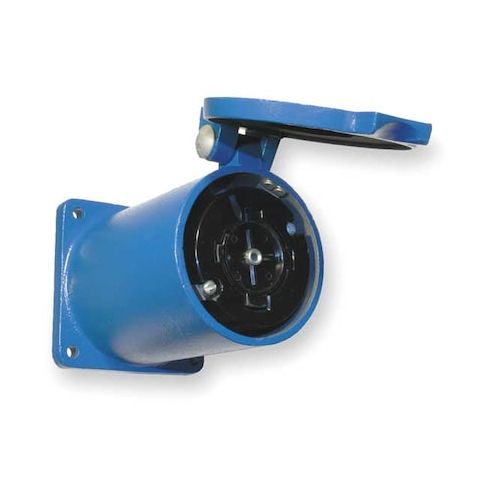

Locking Receptacle, Non-NEMA, 60 A, 600V AC, Single Phase, 4 Pole, Flush Mount, Screw Terminals MPN:HBL26520

• The HUBBELL 60A Locking Receptacle is an industrial electrical device rated for use in specified environments. This flush-mount, non-NEMA locking receptacle features a four-pole, five-wire configuration and is rated for up to 60 amps at 600V AC. The unit incorporates a cast aluminum base with a nylon housing and includes spring-loaded safety shutters.





  Key Features of the HUBBELL 60A Locking Receptacle:





  • Amperage/Voltage Rating: Rated for 60 A and 600V AC operation


  • Configuration: Four poles, five wires
  • polarized design


  • Material Construction: Cast aluminum base with nylon housing
  • copper alloy contacts


  • Mounting Type: Flush mount with screw mounting hardware
  • rectangular flange shape


  • Cord Grip & Strain Relief: Mechanical cord grips clamp down on conductors for strain relief


  • Spring-Loaded Safety Shutter: Contains arcing when mating/unmating devices under load and automatically ejects plug


  • Box Terminals & Screws: Stainless steel screws


  • NEMA Enclosure Rating/IP Rating: NEMA Type 12, 4X enclosure rating
  • IP20 ingress protection (moisture resistant)


  • Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use


  • Flammability/Standards Compliance: UL 94 V0 flammability rating
  • CSA certified and UL listed standards compliance
