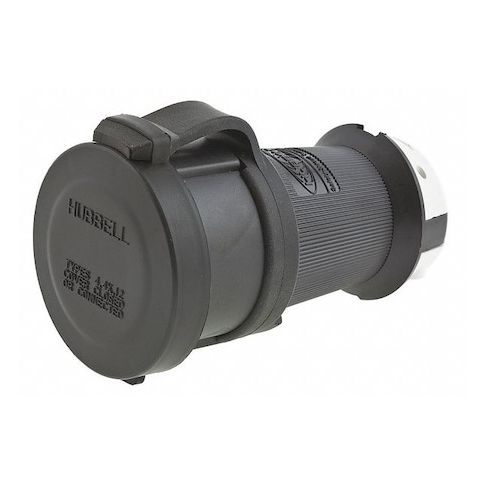

Watertight Locking Connector, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals MPN:HBL2513SW

• The HUBBELL 20A Watertight Locking Connector (L21-20R) is a shrouded, industrial/commercial-grade connector suitable for use in industrial and commercial settings. It features a housing that is rated as watertight and impact resistant

• includes an environmental seal that protects the connection during use. The device accommodates cord sizes from 0.350 to 1.150 inches and includes a closure cap for protection when not connected.




  Key Features of the HUBBELL 20A Watertight Locking Connector:





  • Current/Voltage Rating: Rated for 20 A at 120/208V AC, three-phase operation


  • NEMA Configuration: L21-20R, with four poles and five wires


  • Enclosure Ratings: Meets NEMA Type 12, 4, and 4X
  • IP66 rated for moisture resistance


  • Material Construction: Impact modified PBT housing with Valox body
  • brass contacts
  • thermoplastic insulation


  • Cord Accommodation: Accepts cable diameters from 0.35 in to 1.15 in
  • maximum wire size of 8 AWG, minimum wire size of 16 AWG


  • Operating Temperature Range: -40°C to +75°C


  • Screw Terminals: Standard wiring style using stainless steel screws


  • Resistance Properties: Rated as watertight, moisture resistant, and impact resistant
  • UL94 V-0 flammability rating


  • Certifications: CSA Certified Type 4/4X/12
  • UL Listed standards compliance
